Schneider Electric PowerPacT P Circuit Breaker, 800A, Micrologic 6.0P, Modbus

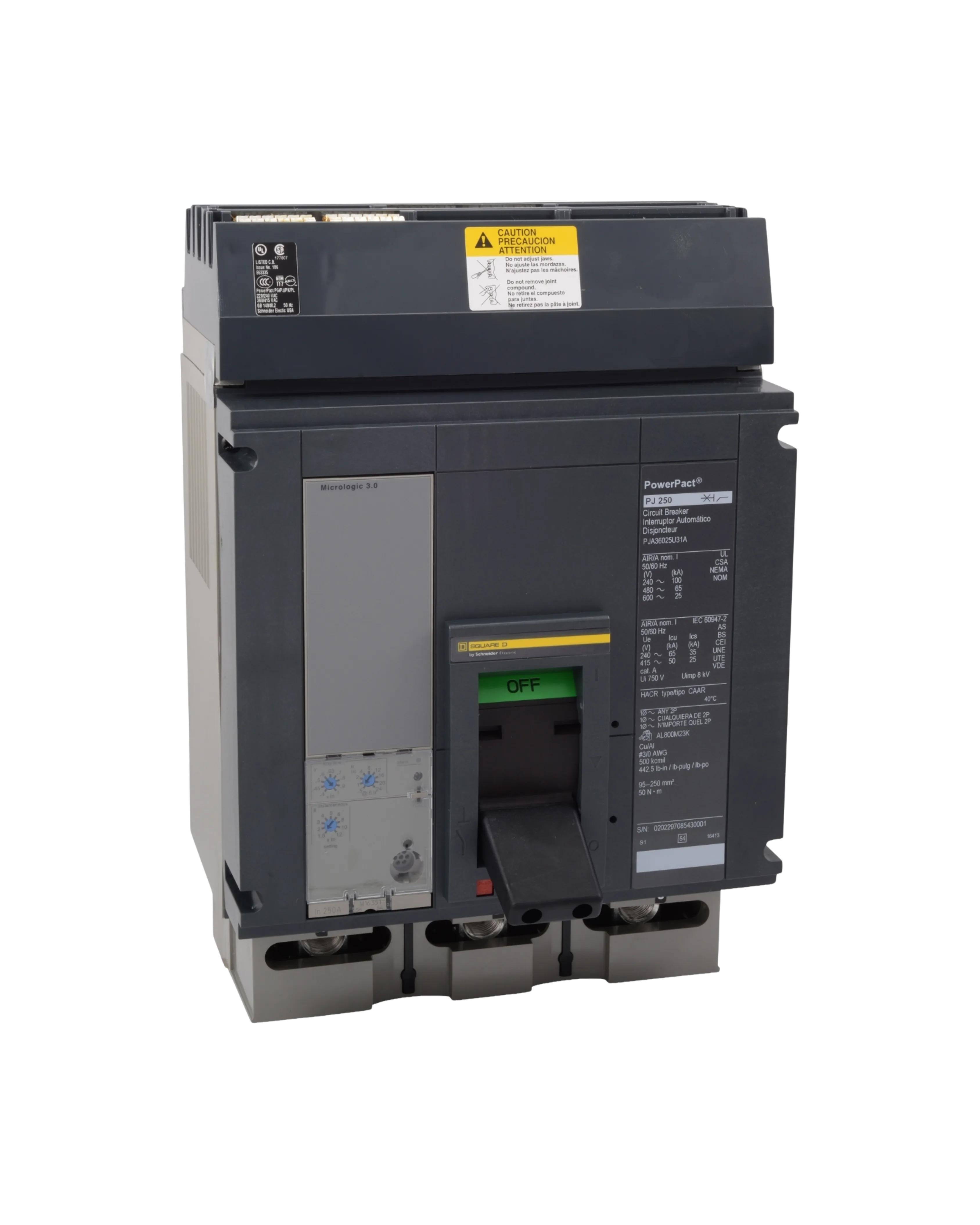

The Schneider Electric PowerPacT P (PLA34080U64AE1) is a 3-pole molded case circuit breaker rated 800A for 600VAC distribution, fitted with an electronic power MicroLogic 6.0P (LSI) trip unit and a Modbus connecting cable, I-Line bracket mounted at 80% continuous current rating.

It delivers a breaking capacity of 25kA at 600VAC (125kA at 240VAC, 100kA at 480VAC per UL 489), an 8kV impulse withstand voltage, accepts 3 x 3/0 AWG to 500 kcmil aluminum/copper conductors, Modbus communication, is UL, CSA and NOM certified, rated IP40 at the front cover, and weighs 14.5kg.
