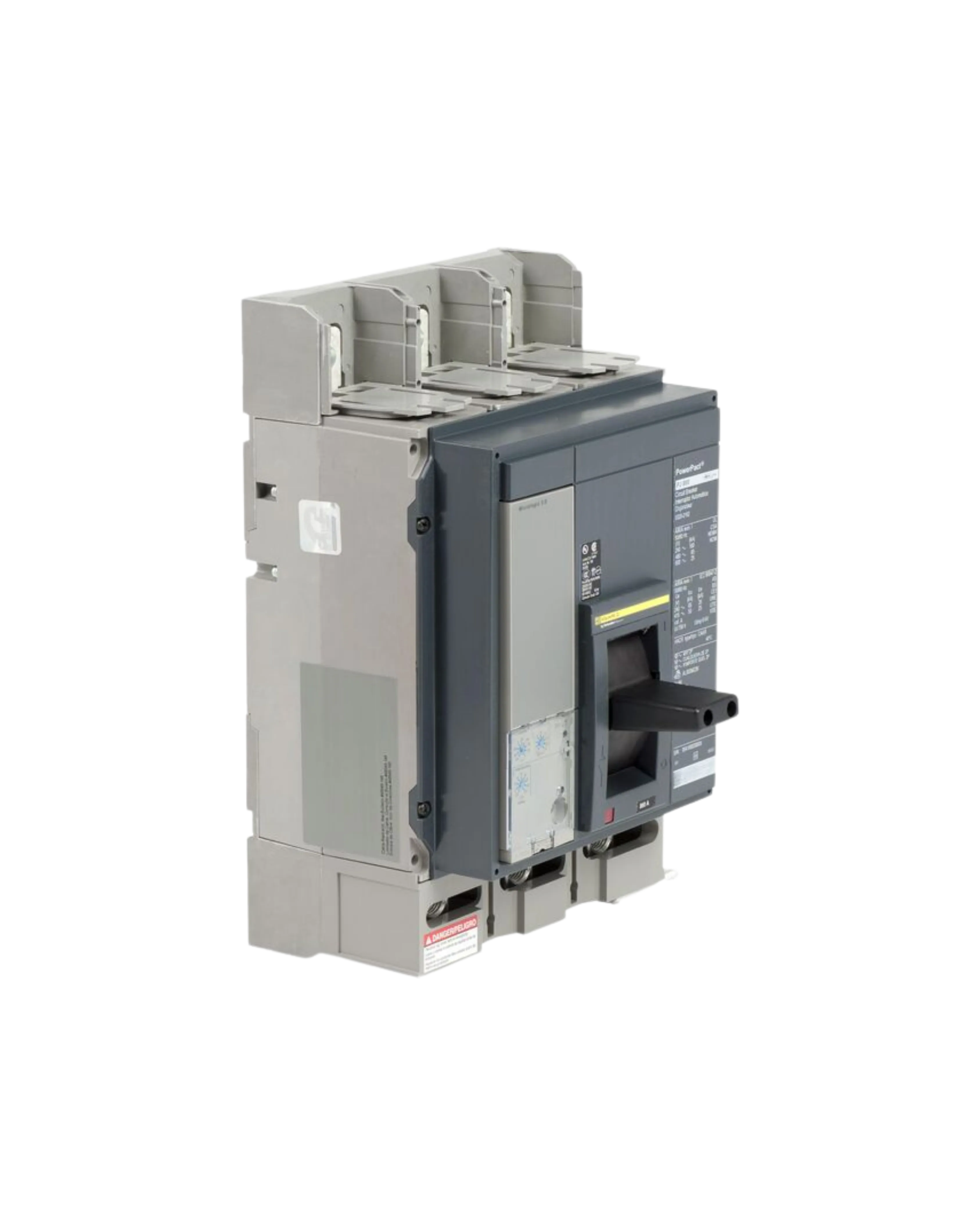

Schneider Electric PowerPacT P Circuit Breaker, 800A, Micrologic 3.0

The Schneider Electric PowerPacT P (PJP36080CU31A) is a 3-pole molded case circuit breaker rated 800A for 600VAC distribution, fitted with a standard electronic MicroLogic 3.0 (LI) trip unit and lug-mounted line/load connections at 100% continuous current rating.

It delivers a breaking capacity of 25kA at 600VAC (65kA at 240VAC, 65kA/480VAC per UL 489), an 8kV impulse withstand voltage, accepts 3 x 3/0 AWG to 500 kcmil aluminum/copper conductors, is UL, CSA and NOM certified, rated IP40 at the front cover, and operates from -25 to +70 degrees C, weighing 14.5kg.
