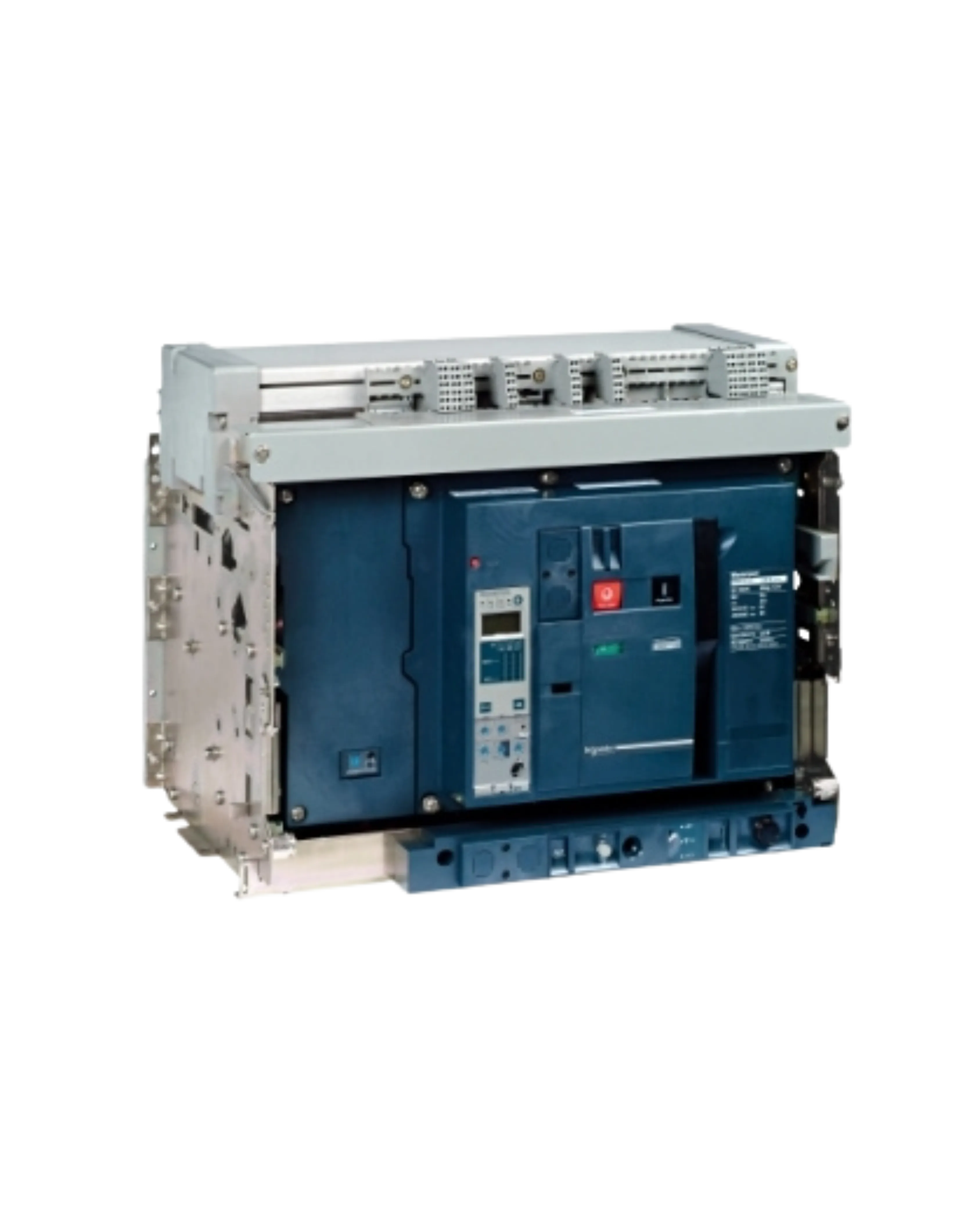

Schneider Electric Masterpact NW40bH1 Air Circuit Breaker, 4000A, 4P

The Schneider Electric Masterpact NW40bH1 is a drawout, 4-pole (left neutral) low-voltage air circuit breaker from the Masterpact NW range, rated 4000A for power distribution protection, supplied without a trip unit for the customer to fit the appropriate MicroLogic control unit.

It delivers an H1 performance type with 100kA breaking capacity (Icu/Ics) at up to 690V AC, a 220kA making capacity (Icm), a 1000V AC insulation voltage and 12kV impulse withstand, is rated IP30, operates from -25 to +70 degrees C, and weighs 300kg.
