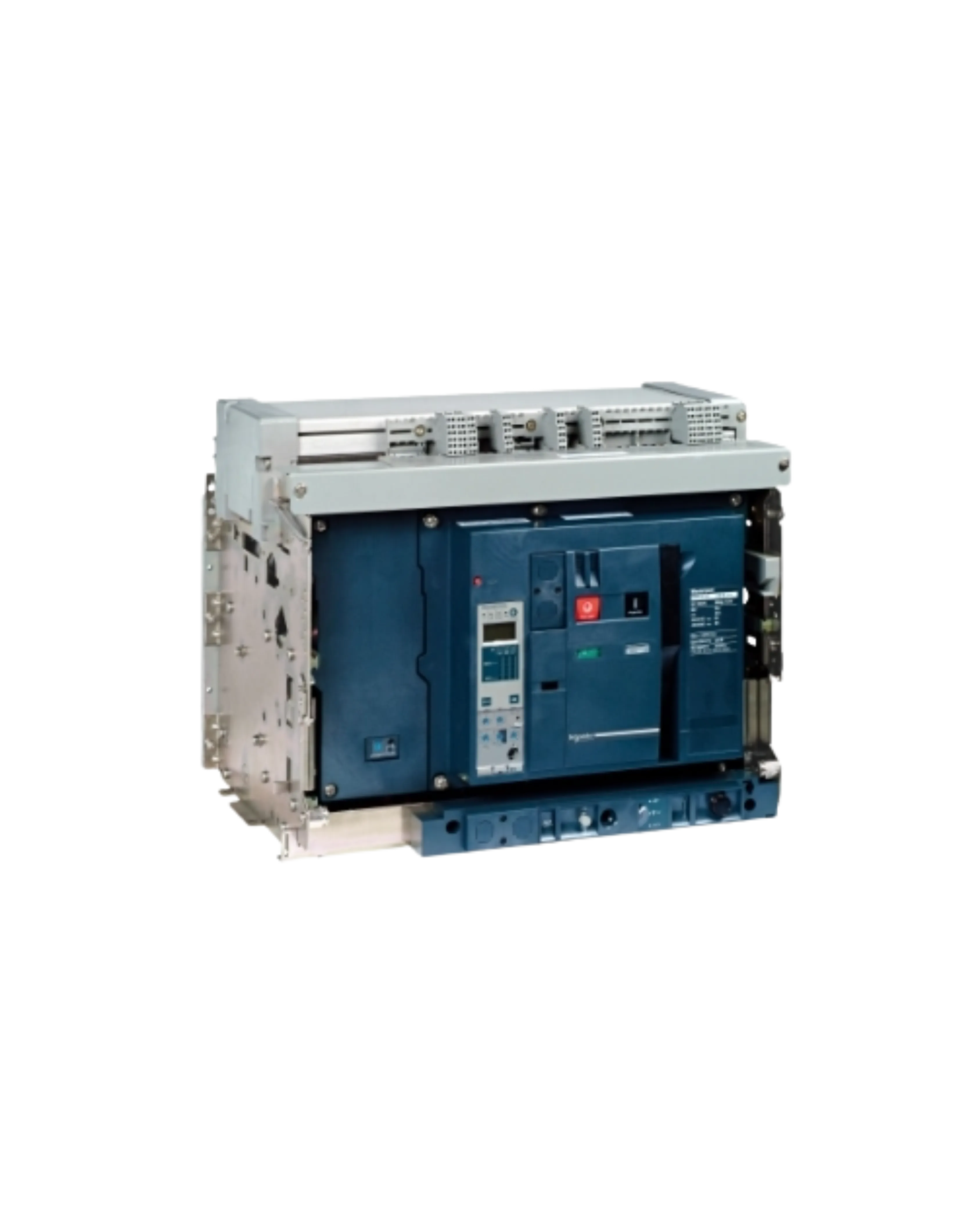

Schneider Electric Masterpact NW32H2 Air Circuit Breaker, 3200A, Drawout

The Schneider Electric Masterpact NW32H2 is a drawout, 4-pole (left neutral) low-voltage air circuit breaker from the Masterpact NW range, rated 3200A for power distribution protection, supplied without a trip unit for the customer to fit the appropriate MicroLogic control unit.

It delivers an H2 performance type with 100kA breaking capacity (Icu/Ics) at 440V (85kA at 690V), a 220kA making capacity (Icm) at 440V, integrated instantaneous protection of 171-209kA peak, a 1000V AC insulation voltage and 12kV impulse withstand, is rated IP30, operates from -25 to +70 degrees C, and weighs 120kg.
