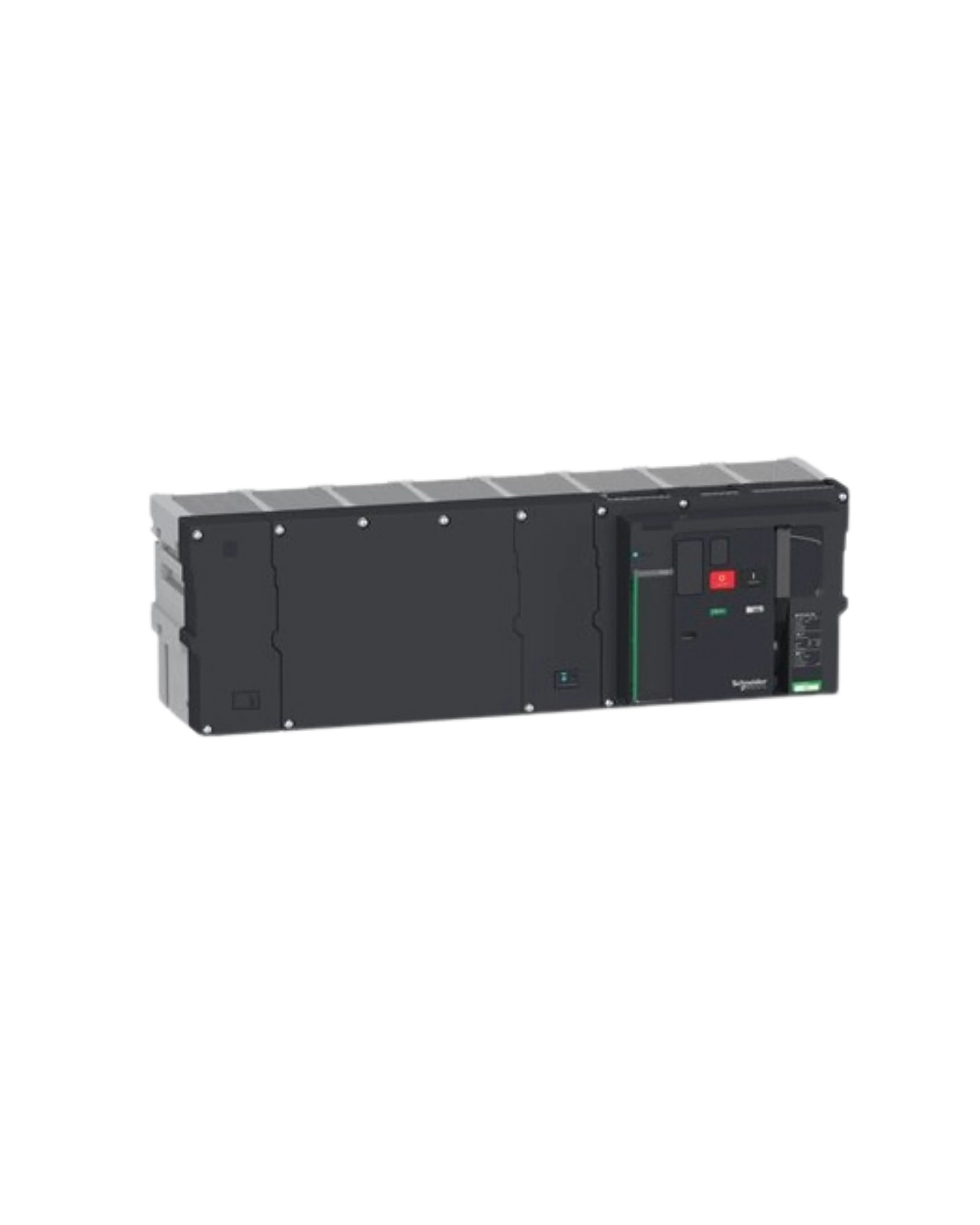

Schneider Electric Masterpact MTZ3 63HA Switch Disconnector, 6300A

The Schneider Electric Masterpact MTZ3 63HA (LV848353) is a drawout, 4-pole (left neutral) switch disconnector rated 6300A for distribution isolation duty, with a push-button control and chassis mounting support.

It delivers a rated operational current of 6300A at 690V AC, an 85kA breaking capacity (Icu/Ics), a 187kA short-circuit making capacity (Icm), a 1000V AC insulation voltage and 12kV impulse withstand, is rated IP30, operates from -25 to +70 degrees C, and weighs 300kg.
