Schneider Electric Altivar Process ATV960 High Performance Drive System, 500 kW

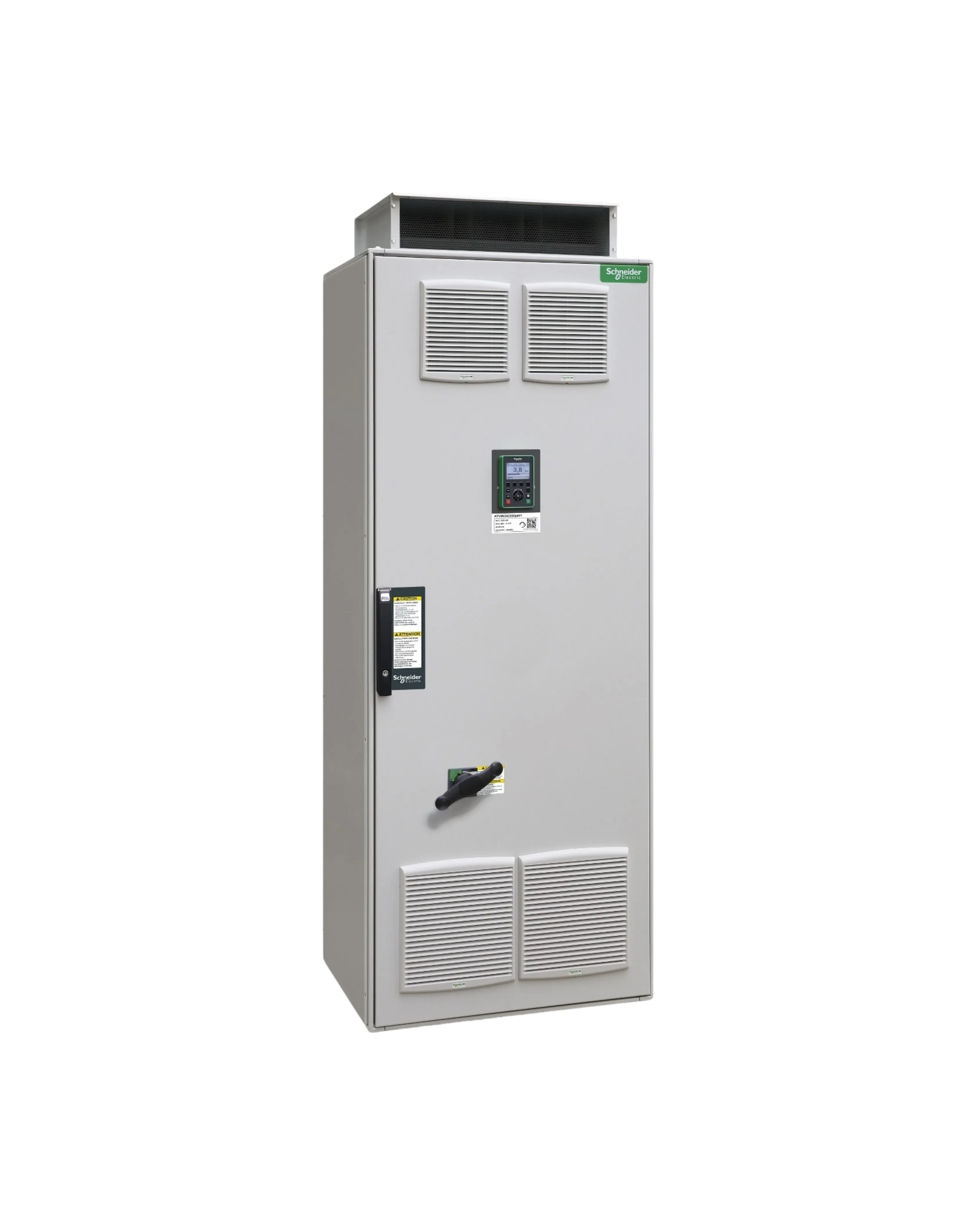

The Schneider Electric Altivar Process ATV960 High Performance Drive System (ATV960C50Q4X1) is a pre-engineered enclosed drive system in a PanelSeT SFN enclosure with a graphical operating panel in the door, rated 500kW (normal duty) / 400kW (heavy duty) at 380-415V, for demanding industrial applications.

It delivers a continuous output current of 900A (normal duty) / 730A (heavy duty), an output frequency range of 0.1 to 599Hz, 98% energy efficiency, EtherNet/IP and Modbus TCP/serial communication (plus optional EtherCAT/Profibus/PROFINET/CANopen/DeviceNet modules and encoder interfaces), STO SIL 3 safety, and a 50kA/100ms prospective line short-circuit rating, in an IP23 enclosure.
