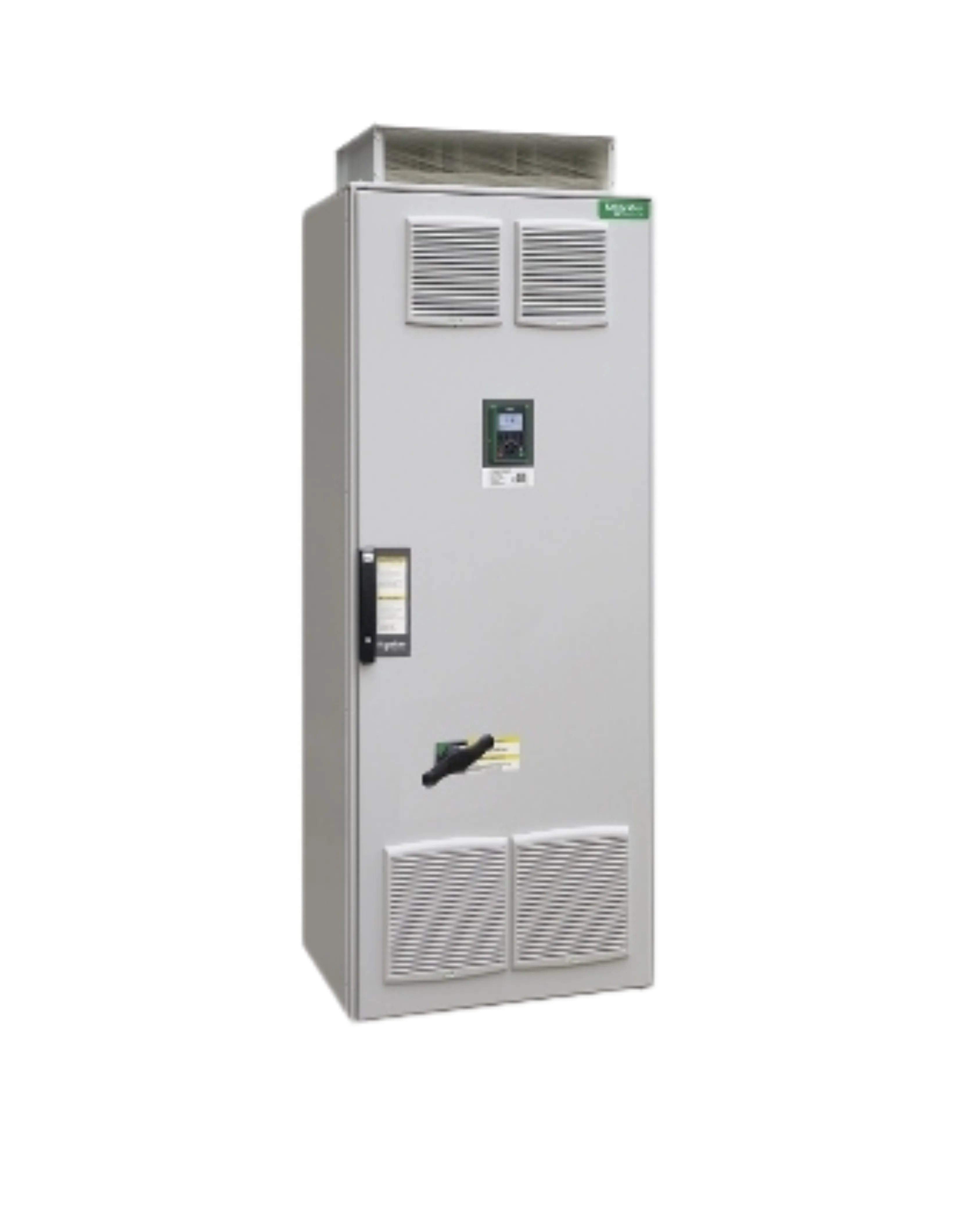

Schneider Electric Altivar Process ATV660 Compact Drive System, 355 kW

The Schneider Electric Altivar Process ATV660 Compact System (ATV660C35Q4X1) is a pre-engineered enclosed drive system in a PanelSeT SFN enclosure with a graphical operating panel in the door, rated 355kW (normal duty) / 280kW (heavy duty) at 380-415V, including a main switch, line choke and terminal blocks.

It delivers a continuous output current of 660A (normal duty) / 520A (heavy duty), 98% energy efficiency, EtherNet/IP and Modbus TCP/serial communication, STO SIL 3 safety for up to 100ms, an integrated EMC filter, 71dB noise level, and a 50kA/100ms prospective line short-circuit rating, in an IP23 light grey (RAL 7035) enclosure.
