Schneider Electric AccuSine PCS+ Active Harmonic Filter, 300A

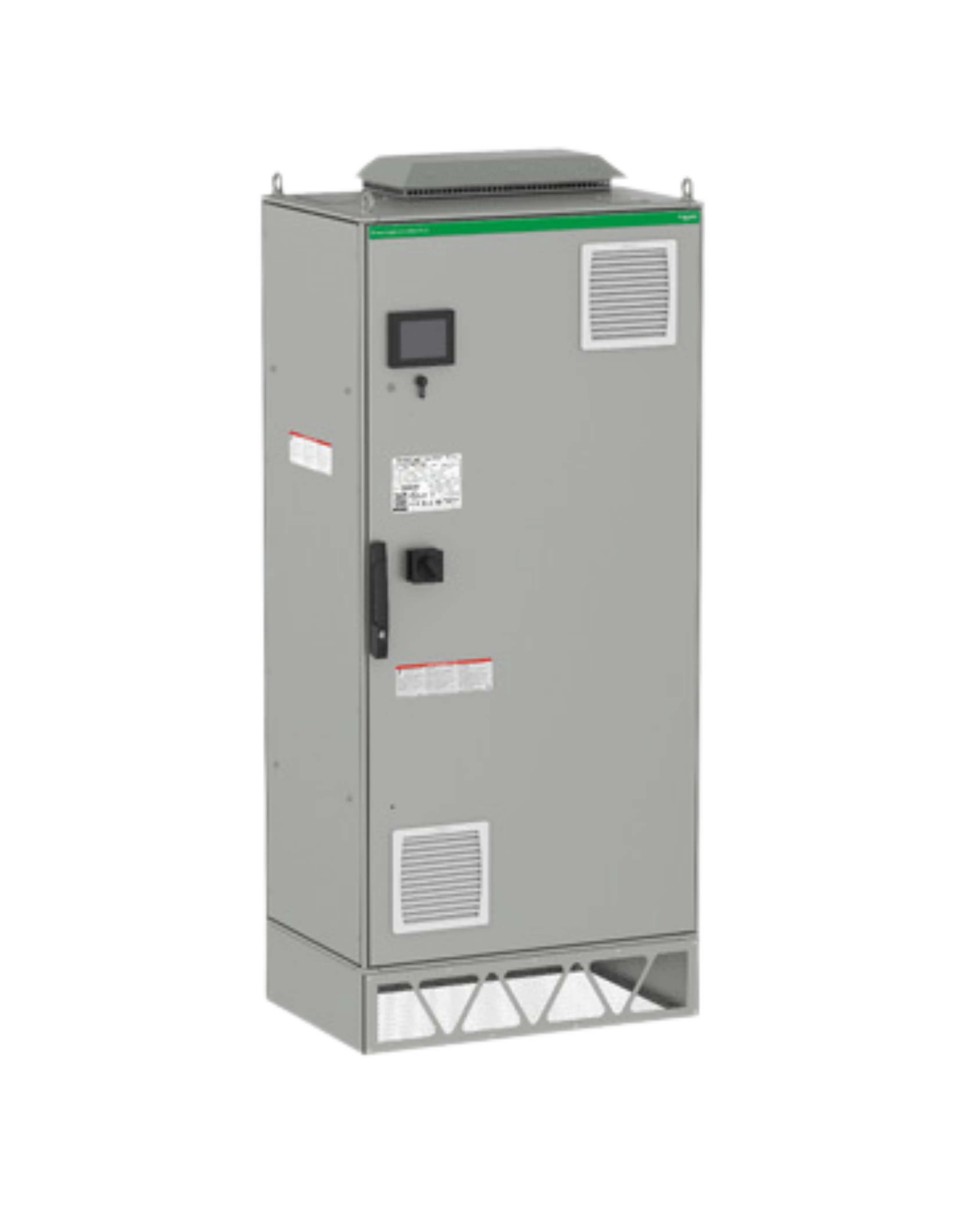

The Schneider Electric AccuSine PCS+ (PCSP300D5IP54) is a floor-standing active harmonic filter rated 300A RMS for 380-480VAC, 3-phase (3 or 4 wire) systems, providing power factor correction, mains current balancing and harmonic cancellation to improve power quality.

It delivers a reactive power rating of 249 kvar at 480V, auto-sensing 50/60Hz +/-3Hz operation, a 200kA interrupt capacity with door-interlocked circuit breaker disconnect, rear plenum forced-air cooling, Class A conducted EMC (EN 61000-6-4), an IP54 light grey (RAL 7035) floor-standing enclosure, and is cULus, CE, ABS and RCM certified, weighing 405kg.
