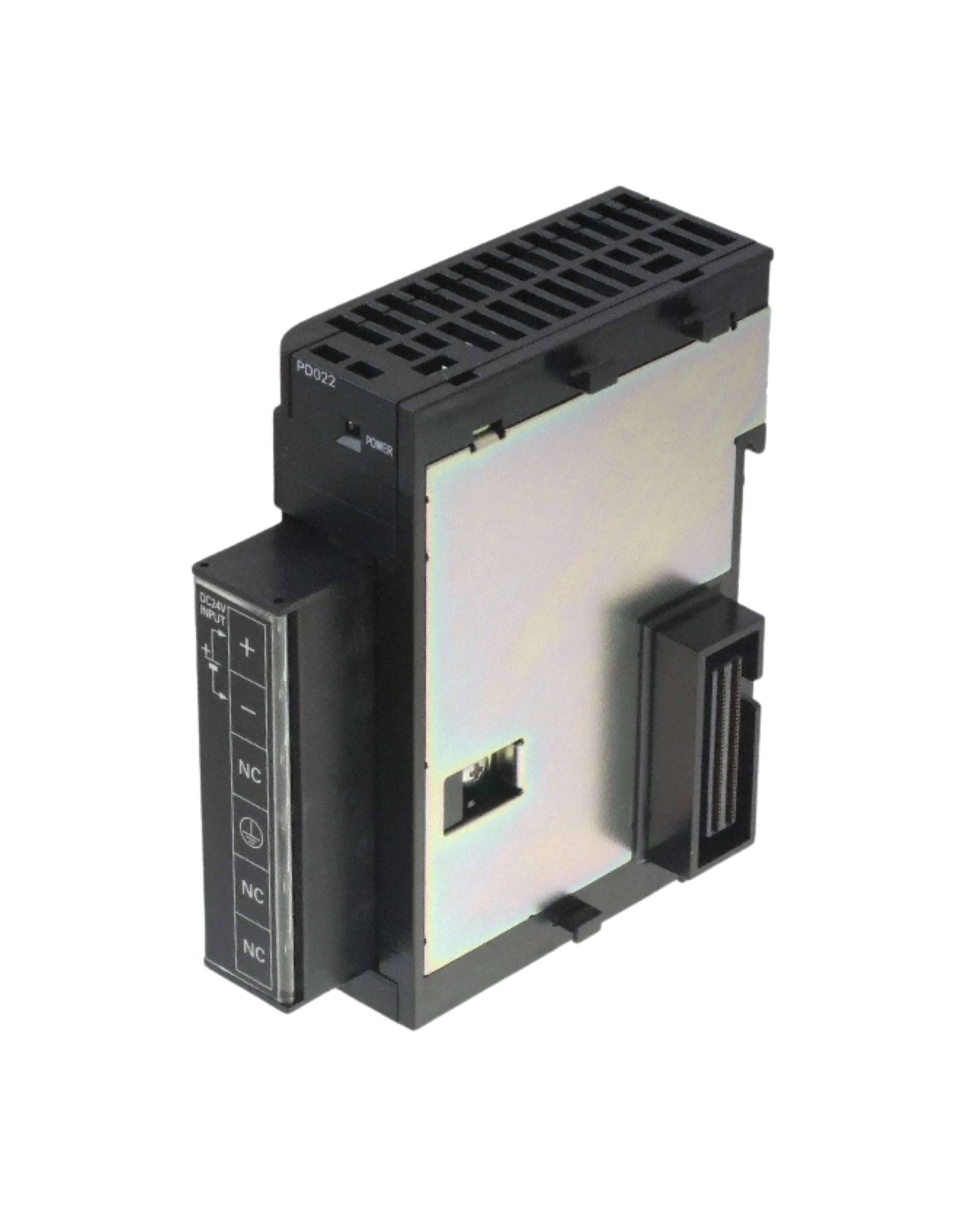

Omron CJ1W-PD022 CJ-Series DC Power Supply Unit

The Omron CJ1W-PD022 is a DC Power Supply Unit for the CJ-series PLC, mounting on the CPU Rack to supply stable power to the CPU Unit and connected I/O Units from a 24V DC source, for installations without an AC mains supply available.

It accepts a 24V DC supply (21.6 to 26.4V DC) and delivers 5V DC at 2A plus 24V DC at 0.4A for a total of 19.6W, is not insulated between the primary and secondary DC power, carries 20MOhm minimum insulation resistance between DC external and GR terminals, and is UC1/CE certified.
