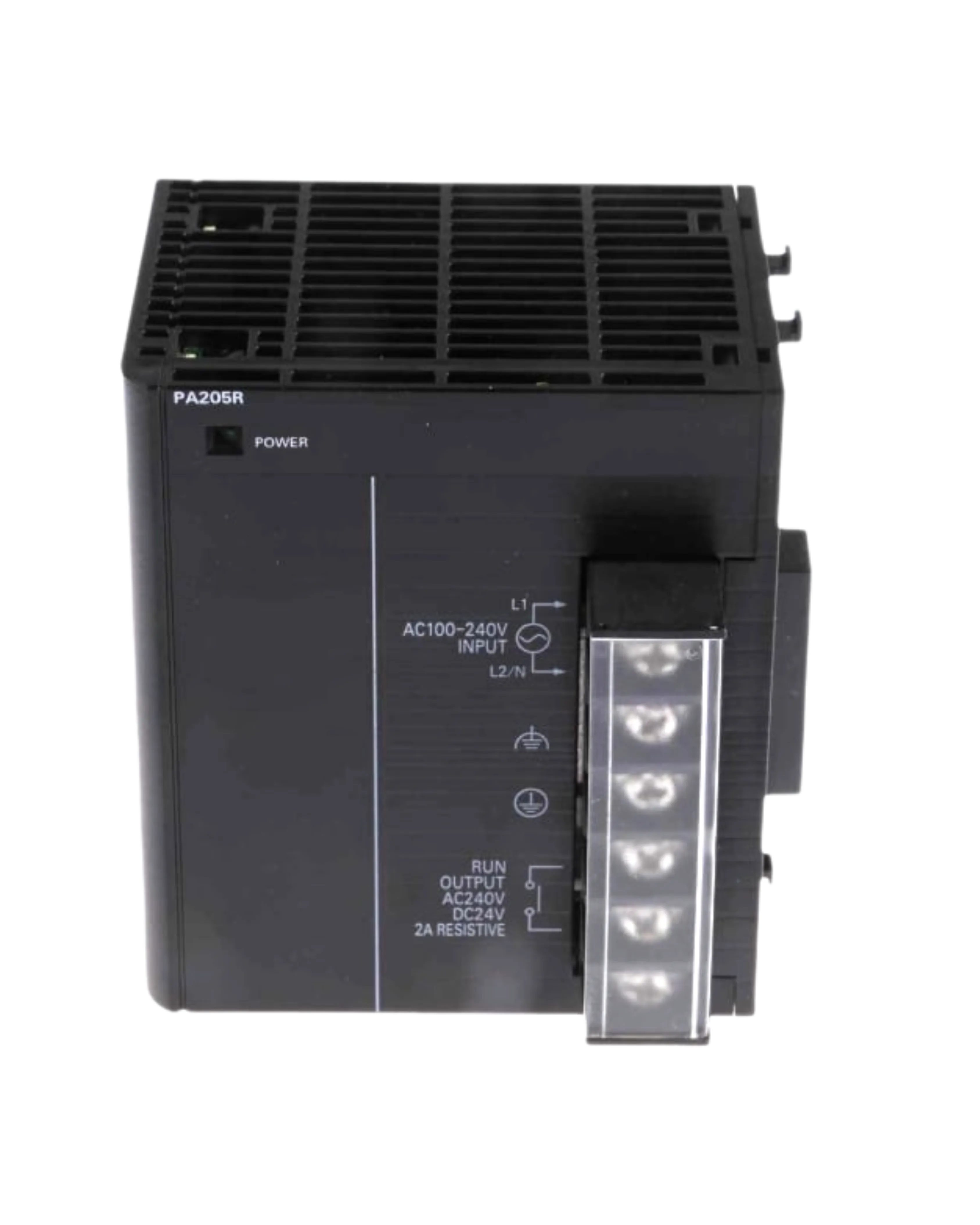

Omron CJ1W-PA205R CJ-Series AC Power Supply Unit with RUN Output

The Omron CJ1W-PA205R is an AC Power Supply Unit for the CJ-series PLC fitted with a RUN output contact that lets external equipment check the CPU operation status, supported when mounted to the CPU Rack.

It accepts a wide-range 100 to 240V AC (85 to 264V AC, 47 to 63Hz) supply and delivers 5V DC at 5A plus 24V DC at 0.8A for a total of 25W, with the RUN output rated 250V AC/2A resistive (120V AC/0.5A inductive) or 24V DC/2A, 20MOhm minimum insulation resistance, and UC1/N/L/CE standards certification.
