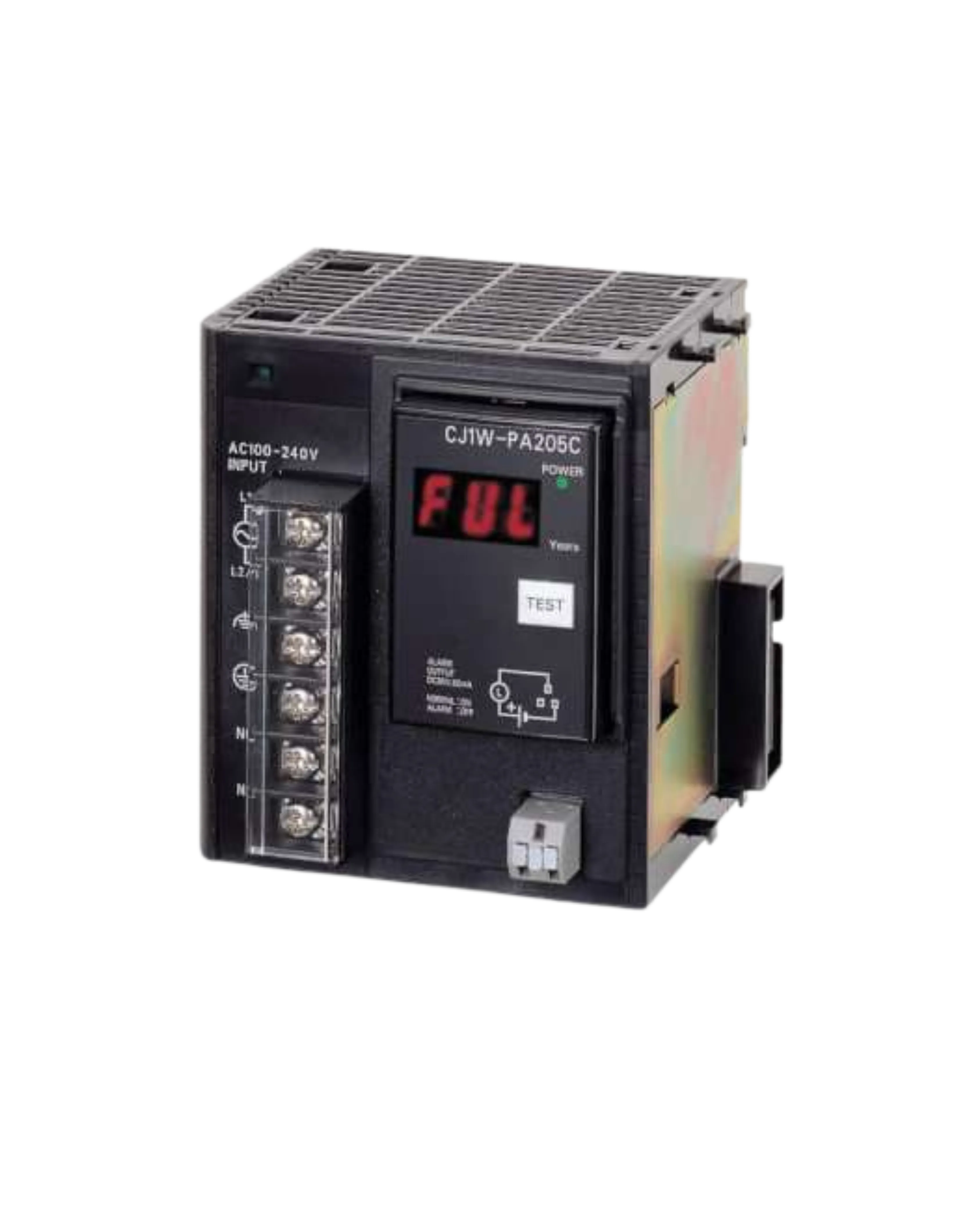

Omron CJ1W-PA205C CJ-Series AC Power Supply Unit with Maintenance Forecast

The Omron CJ1W-PA205C is an AC Power Supply Unit for the CJ-series PLC with a replacement notification (maintenance forecast monitor) function that helps prevent unplanned system downtime from power supply end-of-life, signalled via an alarm output.

It accepts a wide-range 100 to 240V AC (85 to 264V AC, 47 to 63Hz) supply and delivers 5V DC at 5A plus 24V DC at 0.8A for a total of 25W, with the alarm output rated 30V DC max/50mA max, 20MOhm minimum insulation resistance, and UC1/N/L/CE standards certification.
