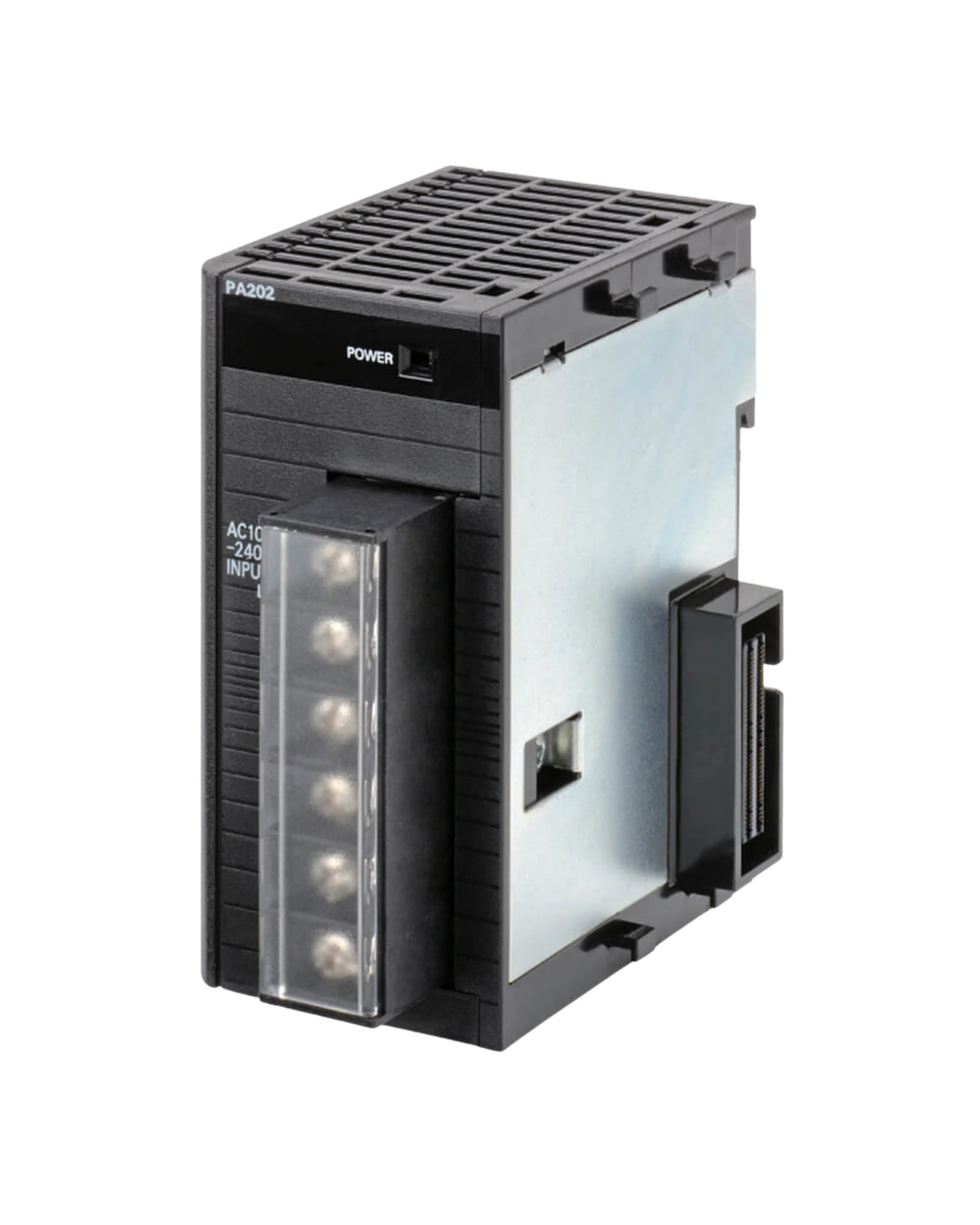

Omron CJ1W-PA202 CJ-Series AC Power Supply Unit

The Omron CJ1W-PA202 is an AC Power Supply Unit for the CJ-series PLC, mounting on the CPU Rack to supply stable power to the CPU Unit and connected I/O Units over the dedicated bus, in the smallest capacity of the PA lineup.

It accepts a wide-range 100 to 240V AC (85 to 264V AC, 47 to 63Hz) supply and delivers 5V DC at 2.8A plus 24V DC at 0.4A for a total of 14W, with 20MOhm minimum insulation resistance and 2,300VAC dielectric strength; it does not include the RUN output or replacement notification functions.
