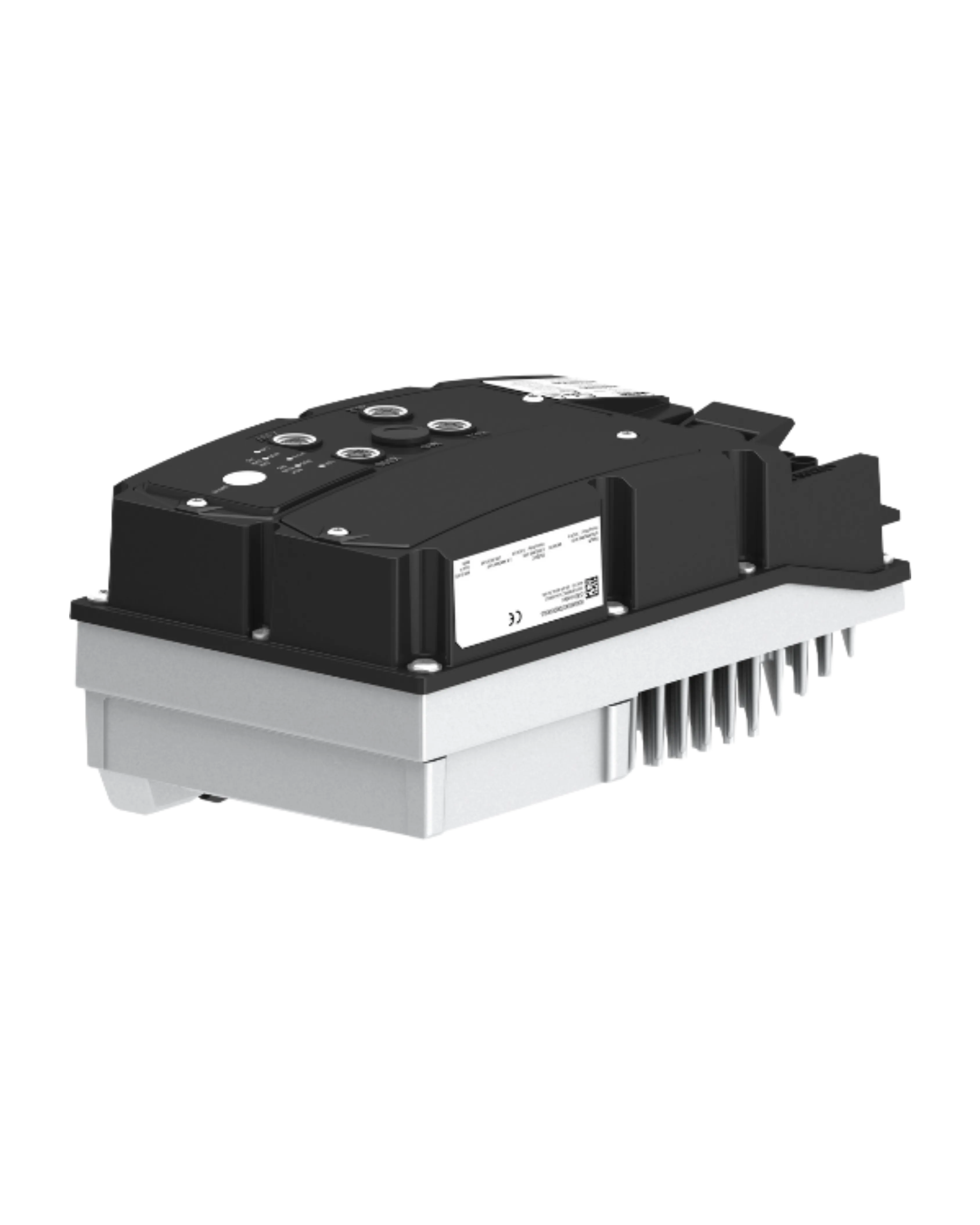

Lenze I55AM137F00DI100KS i550 motec Motor-Mounted Inverter, 0.37 kW

The Lenze I55AM137F00DI100KS is an i550-M0.37/400-3 motec inverter, a decentralised frequency inverter designed to mount directly on the motor (BG 063-071 frame) rather than in a control cabinet, rated 0.37kW (0.5HP) for 3/PE 400/480V mains.

It delivers 1.3A rated / 1.1A output current with an integrated RFI filter and output frequency up to 599Hz, connects via EtherCAT with HAN Q4/2 mains connectors, M12 A-coded I/O and M12 D-coded network connectors, is rated IP66 for motor-mounted outdoor duty, and weighs 3.140 kg.
