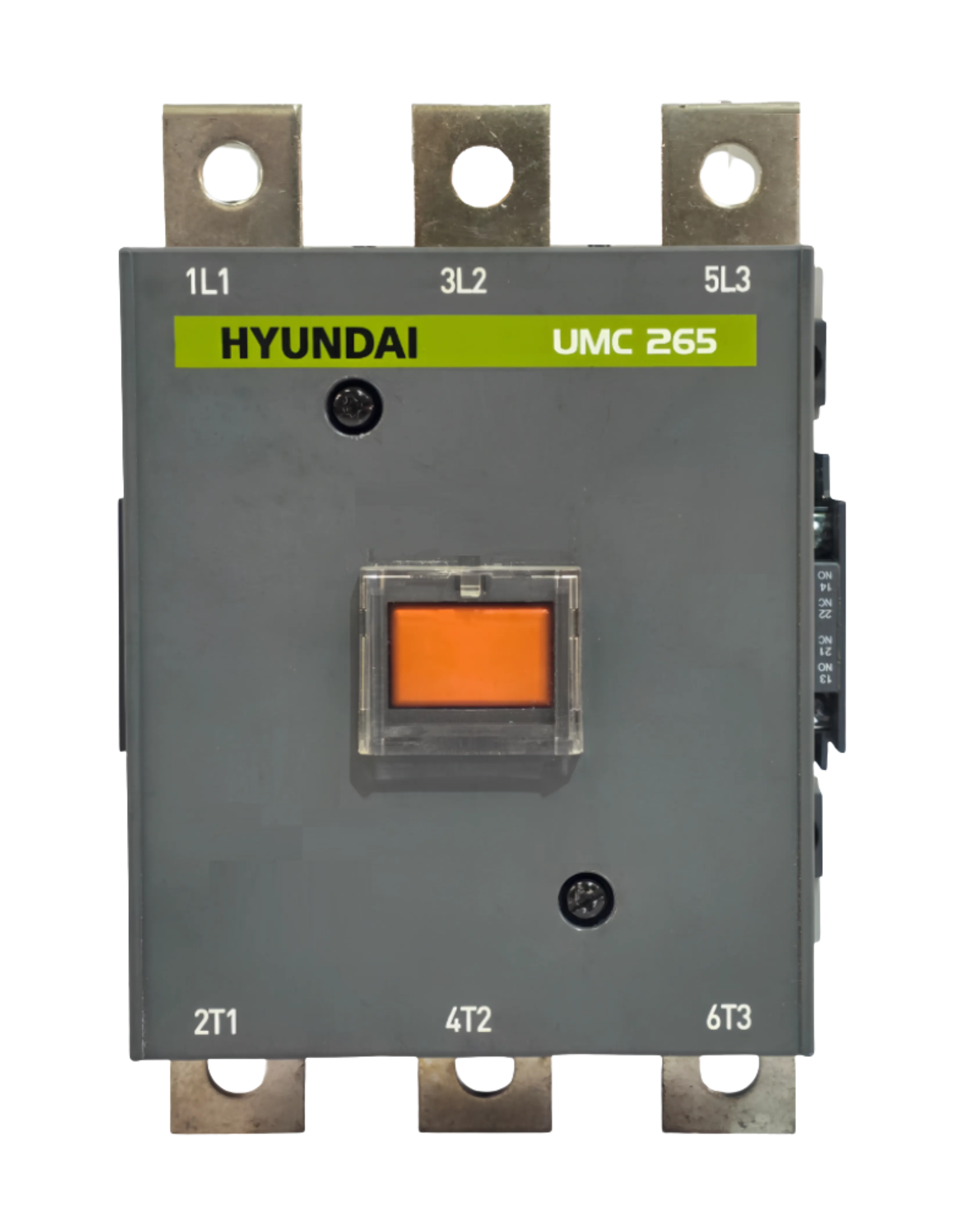

Hyundai UMC265 Magnetic Contactor, 3-Pole 265A

The UMC265 is a 3-pole magnetic contactor from Hyundai Electric's U-Series, IEC 60947-4-1 rated, built for the 265AF frame covering the 185 to 265A contactor range.

It carries a rated insulation voltage of 1000V, rated impulse withstand of 8kV, an AC3 rated operational current of 265A, electrical life of 1,000,000 operations and mechanical life of 5,000,000 operations, with screw main terminals, 2NO+2NC standard auxiliary contacts, and compatibility with the matching UTH265 thermal overload relay.
