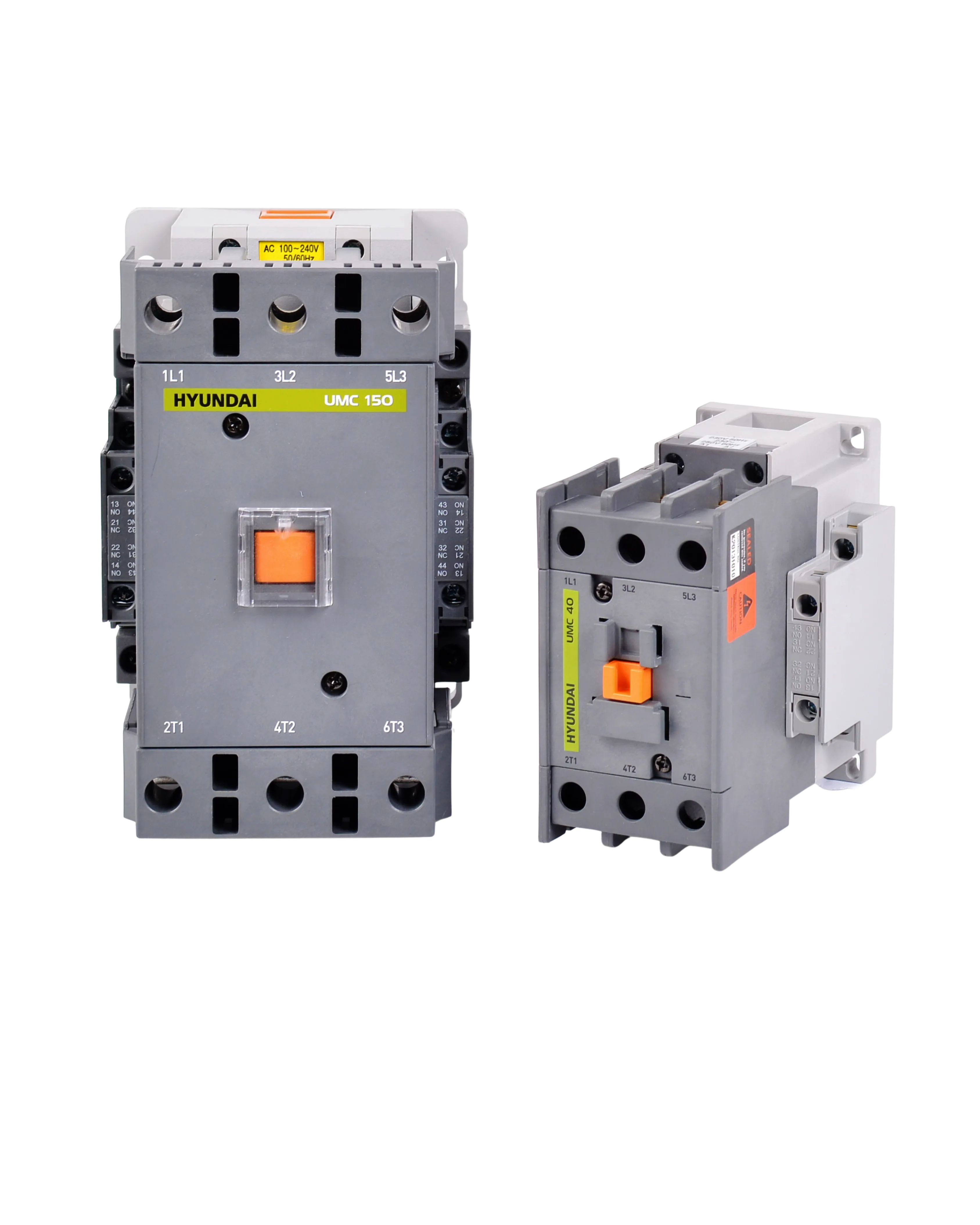

Hyundai UMC150 Magnetic Contactor, 3-Pole 150A

The UMC150 is a 3-pole magnetic contactor from Hyundai Electric's U-Series, IEC 60947-4-1 rated, built for the 150AF frame covering the 115 to 150A contactor range.

It carries a rated insulation voltage of 1000V, rated impulse withstand of 8kV, an AC3 rated operational current of 150A, electrical life of 1,000,000 operations and mechanical life of 5,000,000 operations, with screw main terminals, 2NO+2NC standard auxiliary contacts, and compatibility with the matching UTH150 thermal overload relay.
