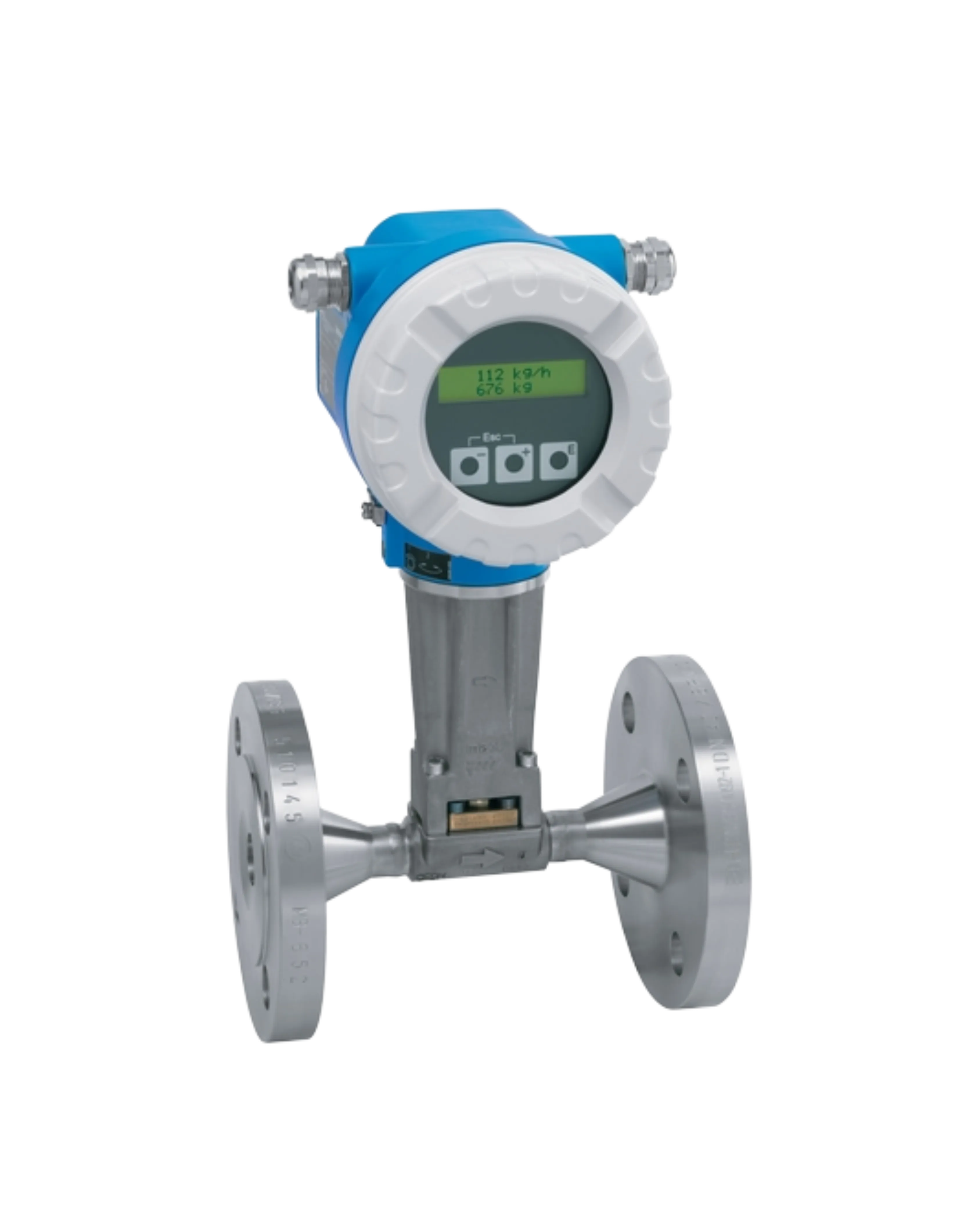

Endress+Hauser Prowirl 72F Vortex Flowmeter

The Endress+Hauser Prowirl 72F is a two-wire vortex flowmeter using a patented capacitive DSC sensor for universal volume flow measurement of gases, steam and liquids, with a dualsens version available for redundant measurement and lifetime calibration requiring no maintenance.

It covers a nominal diameter range of DN 15 to 300, a measuring range of 0.16 to 2,360 m3/h at +/-0.75% accuracy, a medium temperature of -200 to +400 degrees C (up to +450C on request), a max process pressure of PN10-250/Cl150-1500/JIS10-40K, is rated IP67/NEMA 4X with a 2-line LCD display and Quick Setup push buttons, and offers 4-20mA, pulse, status and PFM outputs.
