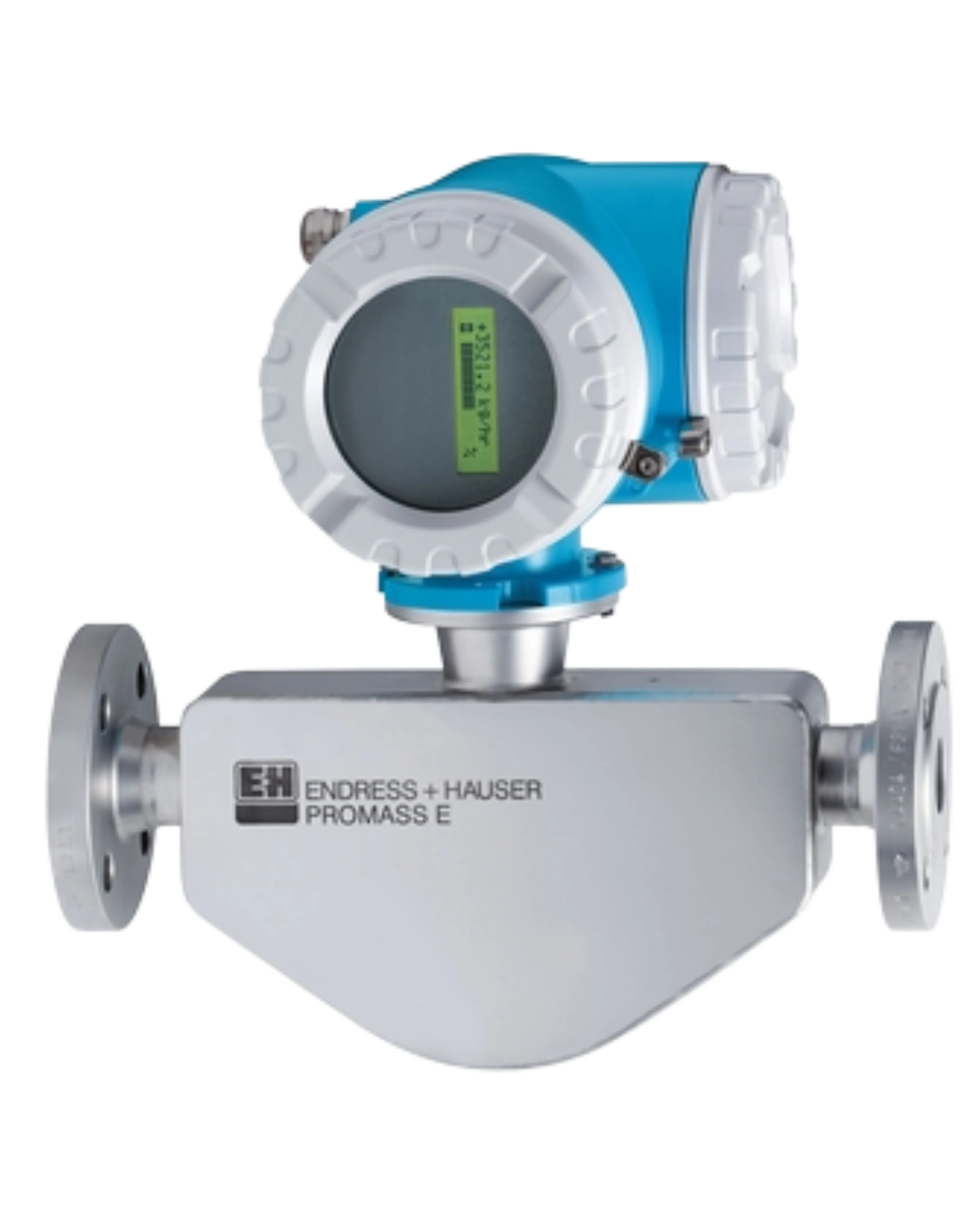

Endress+Hauser Promass 40E Coriolis Mass Flowmeter

The Endress+Hauser Promass 40E is a cost-effective Coriolis mass flowmeter combining the Promass E sensor with the compact Promass 40 transmitter, giving multivariable flow and temperature measurement for low-end applications without the need for in/outlet straight run.

It covers a nominal diameter range of DN 8 to 80, measures mass flow, volume flow and corrected volume flow at an accuracy of +/-0.5% (liquid mass/volume flow) or +/-1.0% (gas mass flow) and +/-0.0005 g/cm3 density, up to a measuring range of 180,000 kg/h, a medium temperature of -40 to +140 degrees C, a max process pressure of PN100/Class 600/63K, with wetted parts in 1.4539 (904L) measuring tube and 1.4404 (316/316L) connections.
