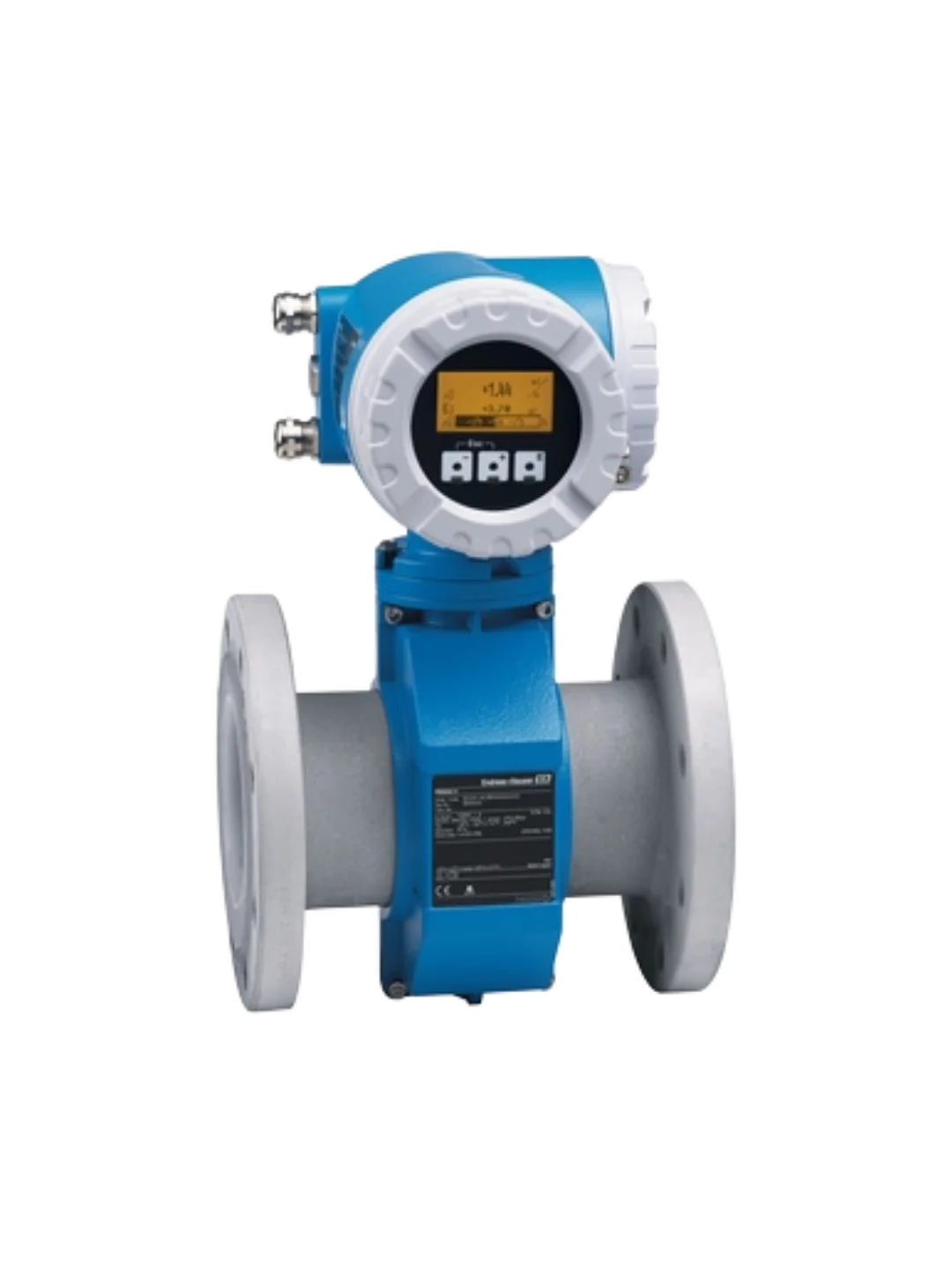

Proline Promag 55S Endress+Hauser - Electromagnetic Flowmeter for Solids-Laden Liquids

Proline Promag 55S is an Endress+Hauser electromagnetic flowmeter built for liquids with solids content or inhomogeneous composition, from pulp and slurries to thick wastewater sludge.

Where a standard electromagnetic flowmeter struggles with abrasive or inconsistent media, the Promag 55S is built for it, measuring bidirectional flow on conductive liquids down to 5 microsiemens per centimeter at rates up to 9600 cubic meters per hour, process temperatures to 180 degrees C and pressures to 40 bar. Linings are selected to suit the application from natural rubber, hard rubber, polyurethane, PTFE or PFA, with flat, bullet nose, neck, bow or brush electrode geometries available for pulps, fruit mashes and concentrates, abrasive ore or mortar slurries, chemically inhomogeneous additive streams, and wastewater sludge. The device carries ATEX, FM and CSA approvals for hazardous areas and connects via HART, PROFIBUS DP/PA or FOUNDATION Fieldbus, with software options for electrode cleaning, advanced diagnostics, and mass flow and solids-content calculation.
