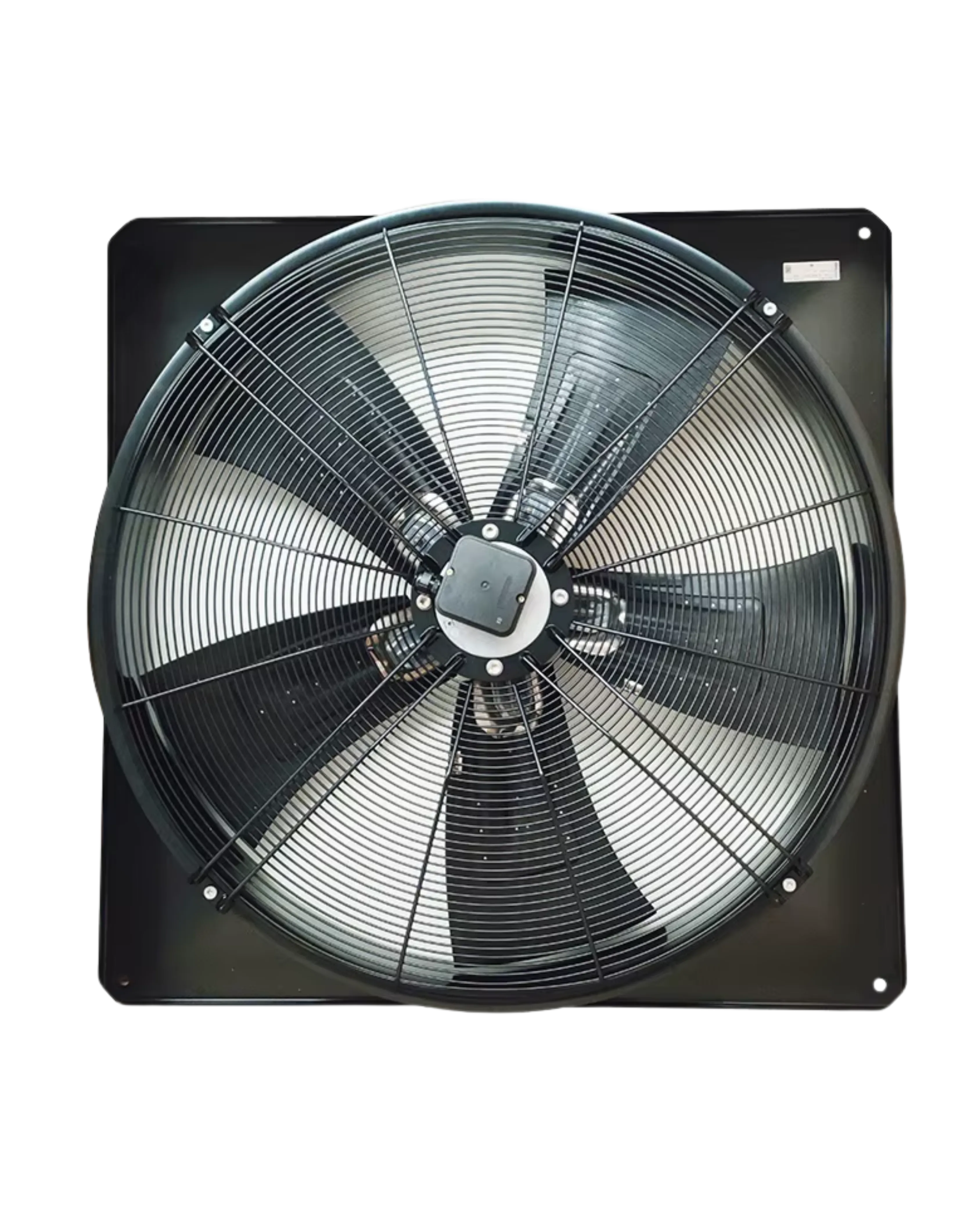

W6D910-GB01-01 ebm-papst - AC Axial Fan, HyBlade, 910mm

The W6D910-GB01-01 is an ebm-papst HyBlade AC axial fan with a 910 mm diameter, 5-blade polypropylene impeller in a wall-mounted ring with nozzle, built for large-volume industrial ventilation.

It runs on a three-phase 400 VAC supply at 50 Hz, two-speed at 920/760 rpm drawing 2020/1390 W (4.62/2.6 A), rated IP54 with class F insulation and thermal motor protection (TOP), operating across -40 to +60 degrees C ambient, and weighs 52.4 kg.
