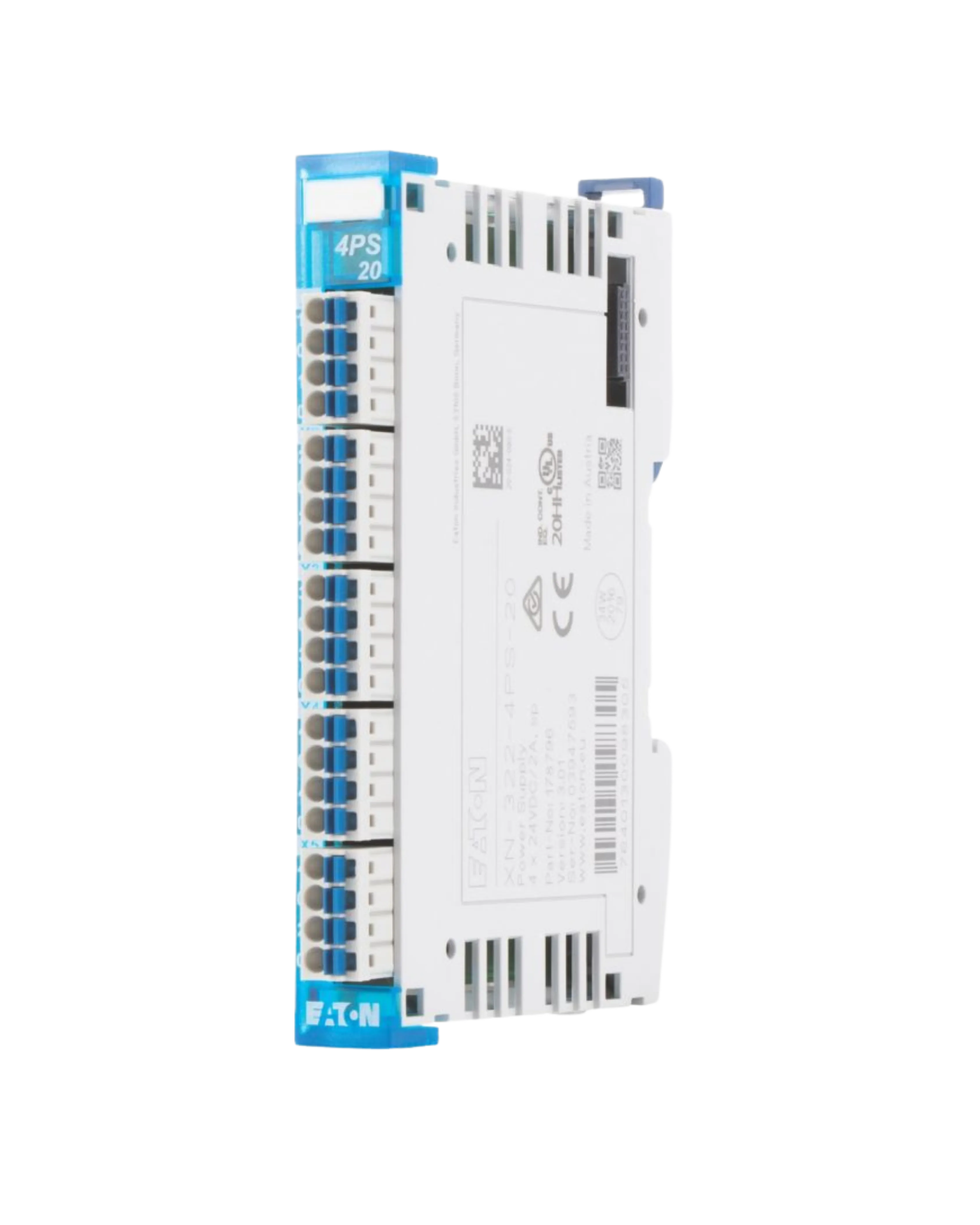

Eaton XN-322-4PS-20 Power Supply Module, 4x24VDC/2A

The Eaton XN-322-4PS-20 is a 24VDC system power supply module for the XN300 I/O system, distributing system power across 9 short-circuit proof 24VDC/GND outputs organized in 4 groups, each rated up to 2A load, for a maximum total current of 6A.

It connects via push-in spring-cage terminals, is rated IP20, CE and cULus approved, built to IEC/EN 61131-2 and the IEC/EN 61000-6 EMC series, operates from 0 to +60 degrees C (storage -20 to +85C), and withstands 8/4kV ESD and 15g/11ms mechanical shock.
