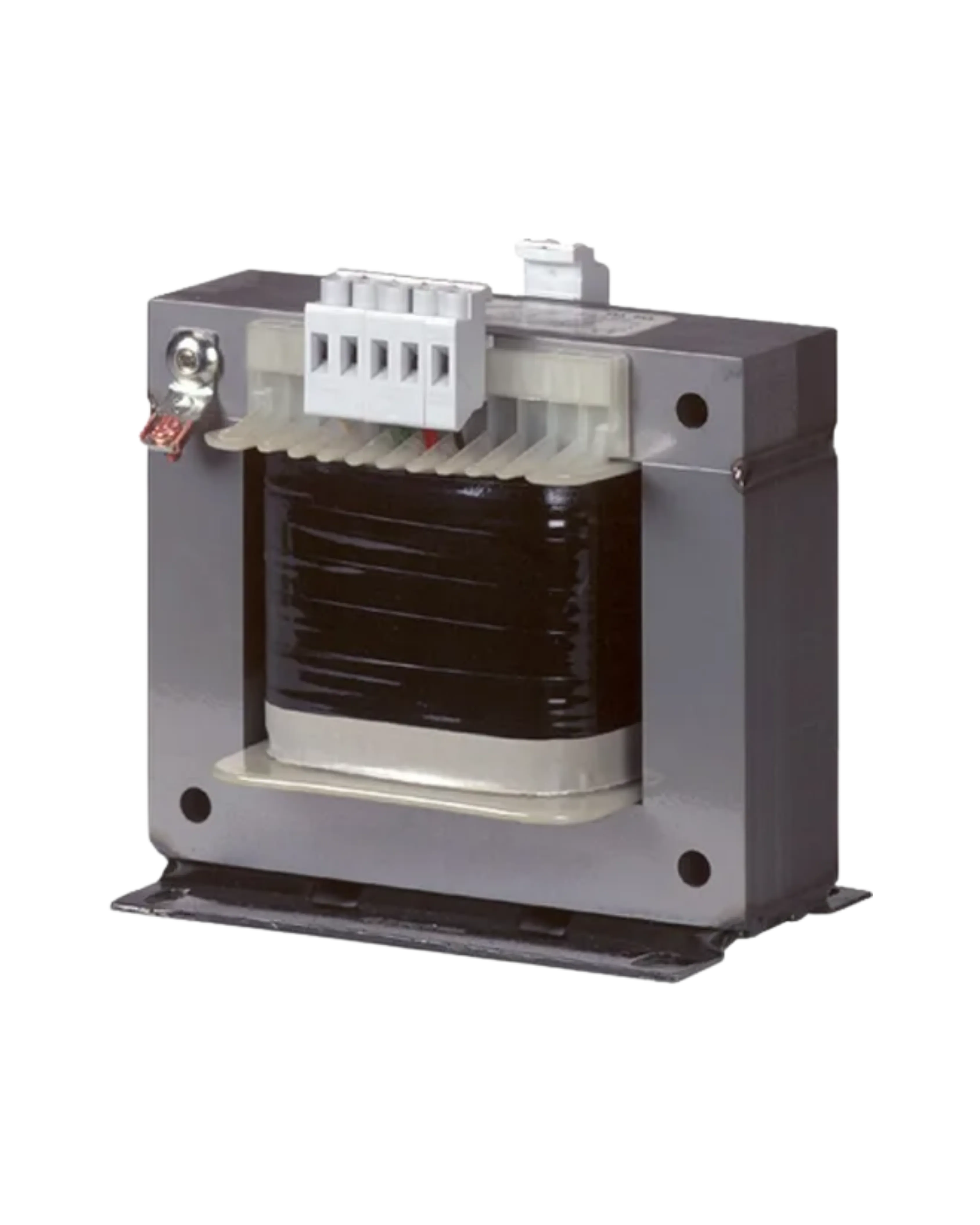

Eaton Moeller STI0,5(400/230) Control Transformer, 0.5 kVA

The Eaton Moeller series STI0,5(400/230) is a single-phase control, isolating and safety transformer with separate windings and reinforced insulation, stepping a 400V (+/-5%) input down to a 230V output for machine control circuits.

It is rated 0.5kVA with 93% efficiency and 15W no-load losses, fully vacuum-impregnated, UL recognized (file E167225) and CSA certified, built to IEC/EN 61558-2-2/2-4/2-6 and VDE 0570 Part 2, with a 100% duty factor, insulation class B, and an ambient operating range of -25 to +40 degrees C, weighing 6.64kg.
