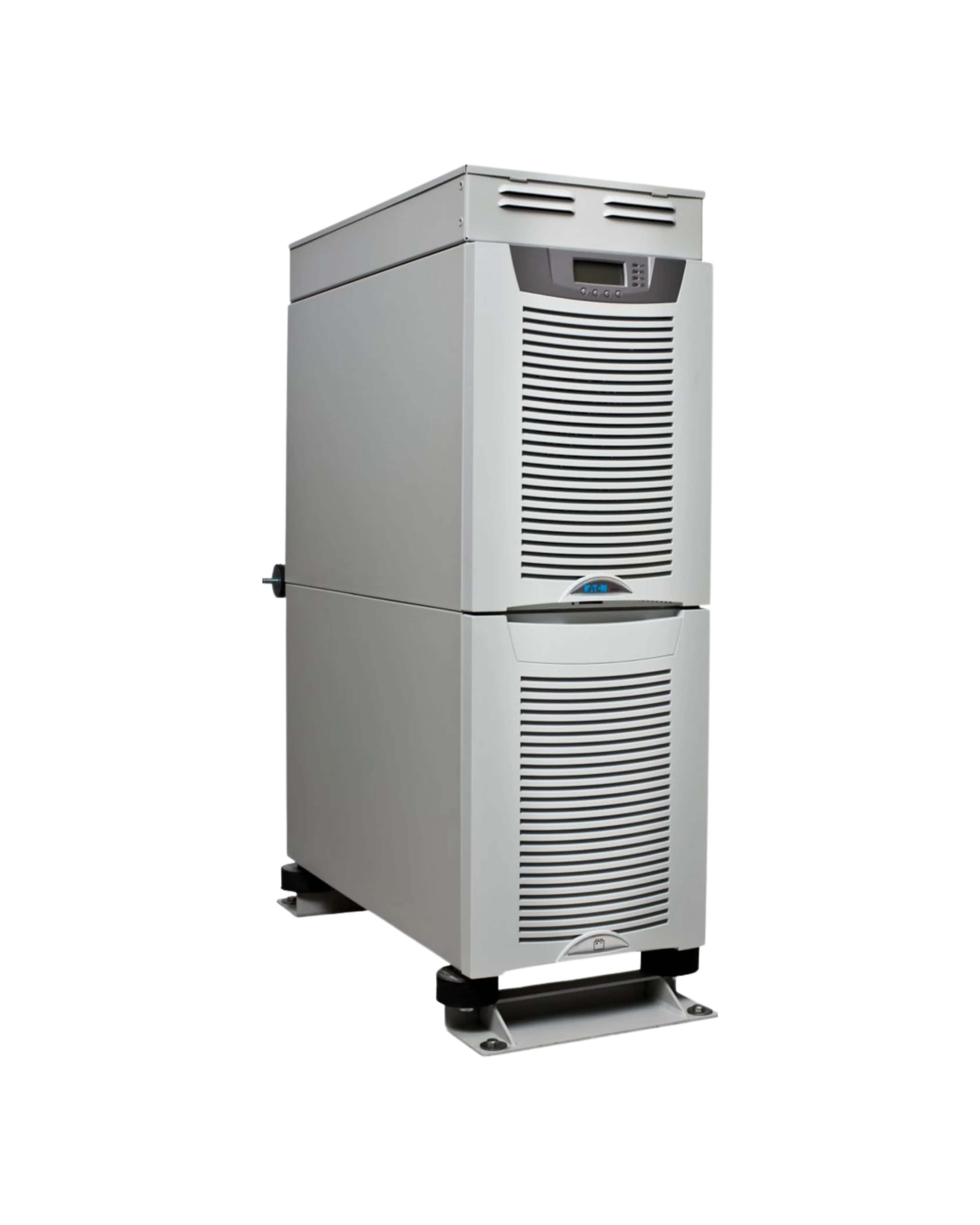

Eaton 9155 Marine UPS, 8 kVA / 7.2 kW

The Eaton 9155 Marine UPS is an online, double-conversion uninterruptible power supply built to marine and offshore Type Approval standards, in a free-standing tower enclosure, taking a 3-phase input and delivering a single-phase output, supplied here without internal batteries and with an empty battery module for 2 strings.

It is rated 8kVA / 7.2kW with a 0.9 output power factor and 91% overall efficiency, a default 400V input (380/400/415V selectable), 50Hz output (50/60Hz programmable), ABM battery charger technology, audible alarms, auto-shutdown and a potential-free switch contact, CE marked to IEC/EN 62040-1/2/3, weighing 119kg.
