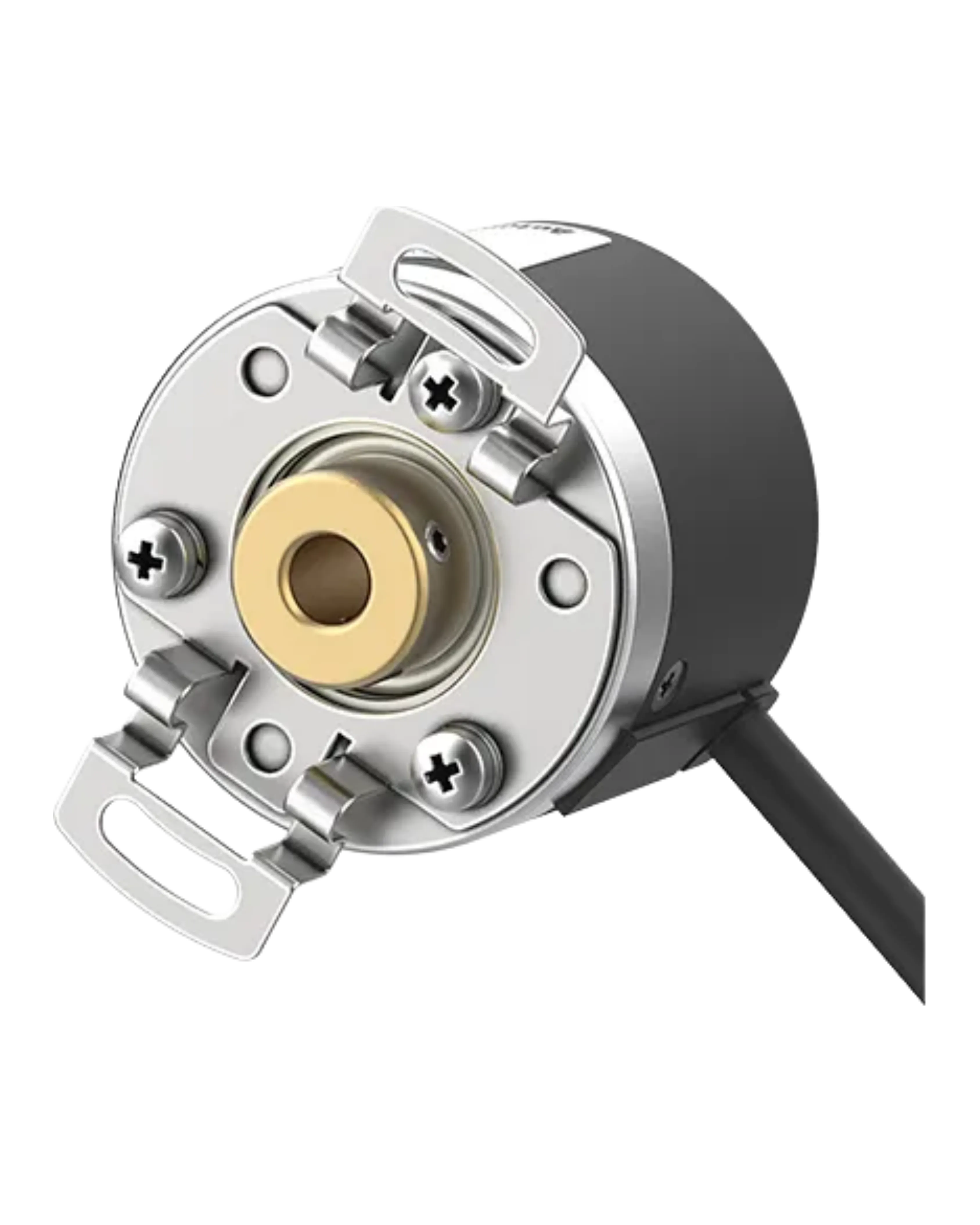

E40H10-1000-3-T-24 Autonics - Hollow Shaft Rotary Encoder, 1000 PPR

The E40H10-1000-3-T-24 is an Autonics E40H Series hollow-shaft incremental rotary encoder outputting 1000 pulses per revolution, built for direct mounting onto a rotating shaft without a separate coupling.

It runs on 12-24 VDC (plus or minus 5 percent), draws up to 80 mA with totem-pole/NPN open collector/voltage output or up to 50 mA with line driver output, is rated IP50, and operates across -10 to 70 degrees C with 100 megohm minimum insulation resistance and 750 VAC dielectric strength for 1 minute.
