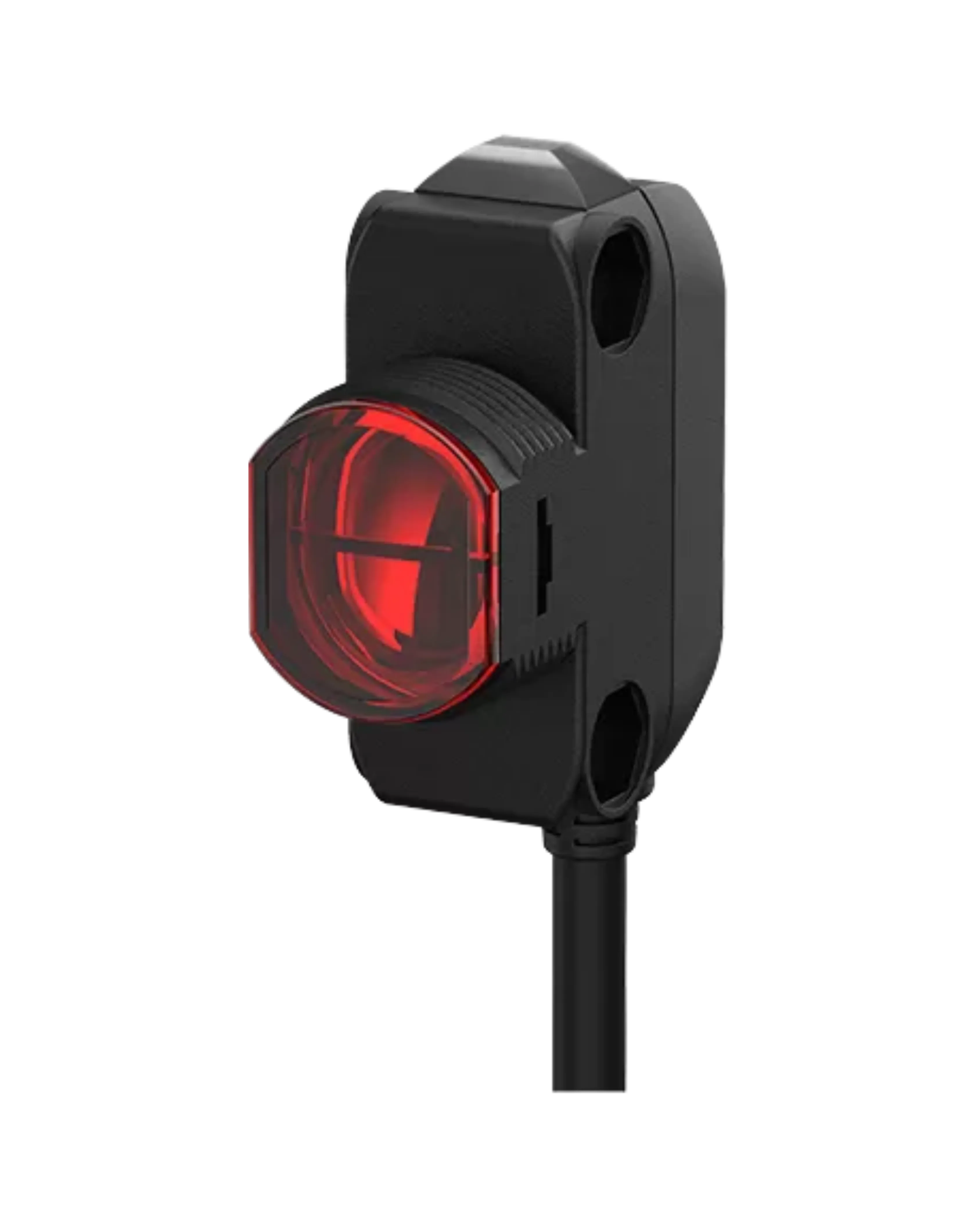

BH300-DDT Autonics - Diffuse Reflective Photoelectric Sensor

The BH300-DDT is an Autonics BH Series diffuse reflective photoelectric sensor with front (M18 nut) or side (M3 bolt) installation, giving a compact W14 x H34.5 x L28 mm body with simultaneous NPN and PNP open collector output.

Rated for a 300mm sensing distance, it runs on 12-24 VDC, responds in 1 ms, uses a red LED (660 nm) light source with adjustable sensitivity, connects via a 2.1 m cable, and is rated IP67 across -20 to 55 degrees C ambient.
