| Range of product |
Altivar |
| Product or component type |

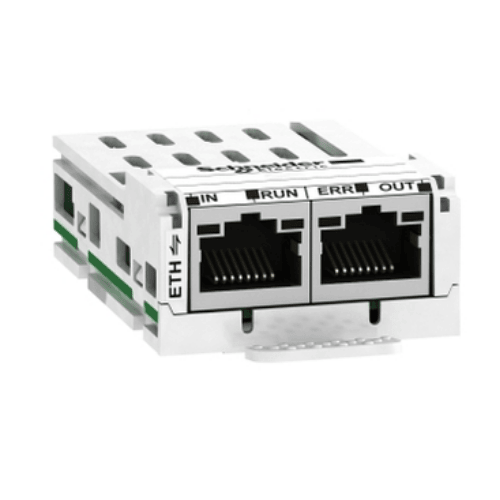

Communication module |
| Accessory / separate part category |
Communication accessories |
Complementary
| Product compatibility |
Lexium 32M |
| Range compatibility |
Altivar Process Modular
Altivar Machine ATV340 except Sercos drives
Altivar Machine ATV320
Altivar Process ATV900
Altivar 32
Lexium 32 |
| Communication port protocol |
EtherCAT |
| Electrical connection |
2 connectors RJ45 |
| Transmission rate |
100 Mbps |
| Maximum cable distance between devices |
100 m for 100 Mbps |
| Addressing |
Logical addressing
Node addressing
Position addressing |
| Communication service |
PDO and SDO support
Drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402)
CANopen over EtherCAT (CoE) |
| Display type |
1 LED for input status
1 LED for RUN
1 LED for error
1 LED for output status |
Environment
| Standards |
IEC 61800-7-201 (CiA 402) |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
6.300 cm |
| Package 1 Width |
4.500 cm |
| Package 1 Length |
9.000 cm |
| Package 1 Weight |
61.000 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
100 |
| Package 2 Height |
30.000 cm |
| Package 2 Width |
30.000 cm |
| Package 2 Length |
40.000 cm |
| Package 2 Weight |
6.580 kg |
Contractual warranty
| Warranty |
12 months |
