How Does a Potter VSR Valve Work?

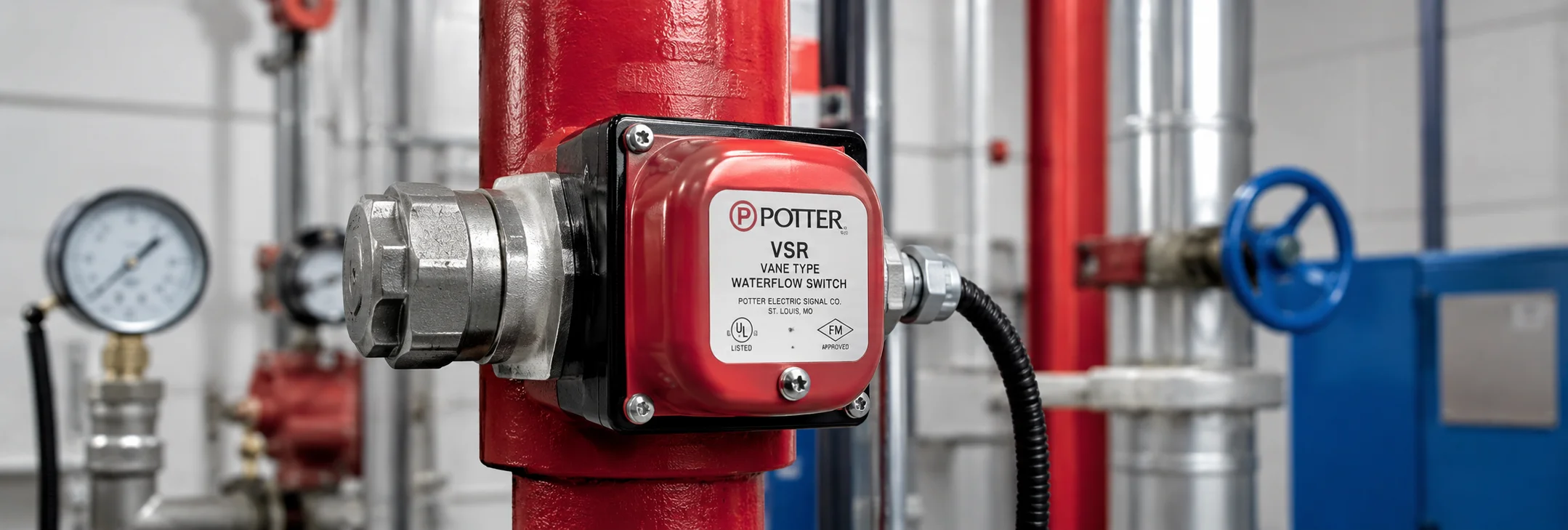

A fire alarm panel throwing a waterflow trouble signal at 2 a.m., with no fire anywhere on the property, is one of the most common reasons a technician ends up staring at a Potter VSR valve mounted on a sprinkler riser. Understanding how a Potter VSR valve works starts with a correction most people never make: it is not a valve in the traditional sense. It is a vane-type waterflow switch, and its job is to detect sustained flow through a pipe and send a signal, not to open or close anything.

Get that distinction wrong and the whole troubleshooting approach goes sideways. The device sits in-line on wet pipe systems, reads flow through a deflected paddle, and routes a delayed signal to whatever panel, PLC, or SCADA point is watching that riser.

Watch the mechanism in action: the video below walks through a Potter VSR valve being tested and reset on an actual riser, which makes the retard delay and paddle deflection easier to follow than a diagram alone.

What a Potter VSR Valve Actually Is

VSR stands for the vane-type switch family Potter Electric Signal Company builds for wet pipe fire sprinkler systems and other liquid-filled process lines carrying continuous flow. A paddle-shaped vane sits inside the pipe through a threaded or grooved fitting, positioned in the direct path of the water.

When flow moves past a set threshold, usually around 10 GPM depending on pipe size, the vane deflects. That mechanical movement drives a lever connected to a set of microswitch contacts inside the weatherproof housing bolted to the outside of the pipe.

A VSR doesn't control anything. It watches, waits out the delay, and reports. Every troubleshooting call starts from that fact.

The Vane and Paddle Mechanism Explained

Time Delay Circuit and Retard Chambers

The part that separates a VSR from a bare paddle switch is the retard chamber, an internal pneumatic dashpot that holds the contacts open for a set window, typically adjustable between 0 and 90 seconds, even after the vane deflects.

That delay exists because water hammer, pressure surges from pump starts, and short pressure fluctuations from other floors on a standpipe can all push the vane momentarily without an actual sustained flow event. Without the retard, every surge becomes a false alarm dispatch.

Microswitch Contacts and Signal Output

Once the delay period passes and flow is still present, the internal microswitches change state and close a dry contact loop. That contact is what actually gets wired back to the fire alarm control panel, a PLC input card, or a monitoring relay feeding a SCADA point.

Two contact sets are standard on most VSR models, one typically reserved for alarm signaling and the other for auxiliary functions such as pump start confirmation or a building management system tie-in.

Where VSR Valves Sit in the System Architecture

Integration with Fire Alarm Control Panels

On a conventional fire alarm system, the VSR contact lands on a standard initiating device circuit, supervised for opens and shorts the same way a pull station or smoke detector circuit is supervised. The panel treats a closed contact after the retard delay as a waterflow alarm condition.

Tie-ins to PLC and SCADA Monitoring

In facilities running a broader industrial automation layer, the same dry contact often lands on a discrete input module on a PLC rack, alongside motor starters, contactors, and other field devices already on that I/O architecture. From there the signal can be historized, trended, or pushed into a SCADA dashboard for facilities that want flow-event logging separate from the fire panel's own log.

This is where commissioning teams need to coordinate early. A VSR wired only to the fire panel gives no visibility to the plant's control room, and a VSR wired only to a PLC input without a supervised circuit back to the fire panel can create a code compliance gap on the life-safety side.

Field Troubleshooting Scenario: Nuisance Alarms on a Sprinkler Riser

A manufacturing plant reports repeated waterflow trouble signals, three to four times a week, always during first shift when production pumps cycle. No sprinkler heads have activated and no leaks are visible anywhere on the riser.

The retard chamber setting is the first thing to check, not the vane itself. If the delay was set too low during original commissioning, or bumped during a later panel swap, transient pressure surges from the plant's own process pumps will trip the switch before the delay window filters them out.

Adjusting the retard to the manufacturer's recommended range, then correlating alarm timestamps against the plant's pump start logs, usually confirms the fix without pulling the VSR from the pipe at all. Replacing the unit outright, which some contractors default to under time pressure, skips a five-minute adjustment that solves the actual problem.

Potter VSR vs Paddle-Type Alternatives

Procurement teams sourcing a replacement or a new install often compare a VSR against a plain paddle switch or a pressure-based alternative. The table below lays out where each option actually earns its place.

Supplier Verification and Sourcing Considerations

Fire protection components carry UL listing and FM approval requirements that vary by model and vane size, and a mismatched or counterfeit unit can fail inspection even if it physically fits the pipe. Cross-reference the exact model number and pipe size range against the manufacturer's current datasheet before ordering, not against a distributor's catalog description alone.

Lead times on genuine Potter components can stretch during regional supply crunches, so procurement managers working against a commissioning deadline should confirm stock with an authorized distributor rather than assuming next-day availability. Buying through unauthorized resellers to save a few days on lead time is a common source of counterfeit units showing up on inspection reports.

Commissioning and Maintenance Best Practices

At commissioning, flow test the switch at the design flow rate, not just a quick tap on the vane, and log the retard chamber setting in the as-built documentation so future technicians are not guessing. Contact resistance should be checked with a proper continuity test rather than assumed from a panel status light.

Predictive Maintenance Indicators

A VSR that starts alarming at flow rates below its rated threshold, or one that intermittently drops out under steady flow, is usually signaling a worn microswitch or a retard chamber diaphragm losing its seal. Neither failure mode is catastrophic on its own, but both erode confidence in the alarm system if ignored, and repeated false dispatches eventually train site staff to dismiss real events.

Acceptable downtime on a life-safety flow switch is effectively zero once a system is occupied, which is why most AHJs require annual functional testing regardless of how quiet the unit has been.

Where the Potter VSR Fits Into Overall System Reliability

A correctly commissioned and correctly delayed VSR is one of the more dependable devices on a fire protection riser precisely because it has so few moving parts: a vane, a lever, a dashpot, and a switch.

Most of the field problems attributed to the device itself turn out to be commissioning or wiring issues further up the chain, not device failures.

Treating the VSR as a signal source inside a larger monitored system, rather than an isolated fire panel accessory, is what keeps both the life-safety side and the facility's broader automation visibility in sync.
